Yamaha YZF-R1M 2017 specifications pictures and more for the 2017 Yamaha YZF-R1M in South Africa brought to you by Motomedia

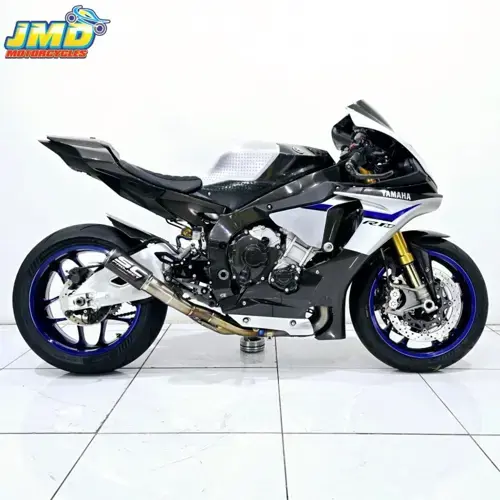

Yamaha YZF-R1M 2017 specs

Motomedia / Motorcycle makes / 2017 Yamaha specs || Yamaha YZF-R1M 2017 specs
Latest motor bike specifications and pictures for the 2017 Yamaha YZF-R1M.



Yamaha YZF-R1M 2017 motorcycle info

Main Detail

Make
Yamaha
Model
YZF-R1M
Year
2017
Category
Sport

Performance and Speed

Power to Weight Ratio
1.1111 HP/kg
Torque
112.00 Nm (11.4 kgf-m or 82.6 ft.lbs) @ 11500 Revolutions">RPM

Dimensions and Weight

Dry Weight
180.0 kg / 396.8 pounds
Overall Height
1,151 mm / 45.3 inches
Overall Length
2,055 mm / 80.9 inches
Overall Width
691 mm / 27.2 inches
Trail
102 mm / 4.0 inches
Kerb Weight
200.0 kg / 440.9 pounds
Wheelbase
1,405 mm / 55.3 inches

Engine and Exhaust

Bore / Stroke
79.0 x 50.9 mm / 3.1 x 2.0 inches
Engine Capacity
998.00 cc / 60.90 cubic inches
Compression
13.0:1
Engine Detail
Crossplane crankshaft technology. Titanium intake valves.
Engine Type
In-line four, four-stroke
Ignition
TCI: Transistor Controlled Ignition
Starter
Electric
Valves / Cylinder
4
Exhaust system
Titanium Exhaust

Transmission (Gearbox) and Final Drive

Transmission Type
Chain
Gearbox
6-speed
Clutch
Multiplate slipper clutch
Drive line
O-ring chain

Fuel and Emission Standards

Fuel System
Injection. Fuel Injection with YCC-T and YCC-I
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Fuel Consumption
7.02 litres/100 km (14.2 km/l or 33.51 mpg)
Fuel Capacity
17.03 litres / 4.50 gallons
Greenhouse Gases
162.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Suspension

Front Suspension
43mm ?hlins electronic suspension w/ inverted fork; fully adjustable
Front Wheel Travel
119 mm / 4.7 inches
Rear Suspension
?hlins electronic suspension w/ single shock w/piggyback reservoir, 4-way adjustable
Rear Wheel Travel
119 mm / 4.7 inches

Tires and Rims

Front Tire
120/70-ZR17
Rear Tire
200/55-ZR17

Brakes

Front Brakes
Double disc. ABS. Hydraulic. Four-piston calipers.
Front Brake Diameter
320 mm / 12.6 inches
Rear Brakes
Single disc. ABS. Hydraulic.
Rear Brake Diameter
220 mm / 8.7 inches

Instrumentation and Lighting

Lighting
LED Headlights

Notes, Comments and Warranty Information

Comments
Banking sensitive Traction Control / Slide Control
Factory Warranty
1 Year Limited Factory Warranty
Colour Options
Silver Blu Carbon
