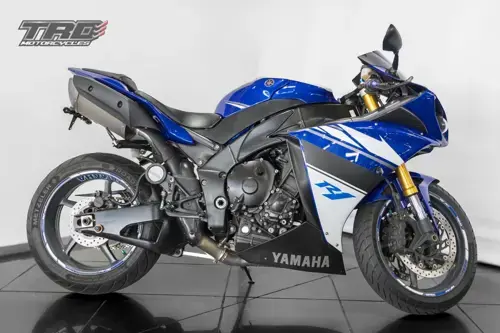

Yamaha YZF-R1 2009 specifications pictures and more for the 2009 Yamaha YZF-R1 in South Africa brought to you by Motomedia

Yamaha YZF-R1 2009 motorcycle info

Main Detail

Make

Yamaha

Model

YZF-R1

Year

2009

Dimensions and Weight

Overall Height

1,130 mm / 44.5 inches

Overall Length

2,060 mm / 81.1 inches

Overall Width

714 mm / 28.1 inches

Trail

102 mm / 4.0 inches

Kerb Weight

205.9 kg / 454.0 pounds

Wheelbase

1,415 mm / 55.7 inches

Engine and Exhaust

Bore / Stroke

78.0 x 52.2 mm / 3.1 x 2.1 inches

Engine Capacity

998.00 cc / 60.90 cubic inches

Compression

12.7:1

Engine Type

In-line four

Ignition

TCI: Transistor Controlled Ignition

Starter

Electric

2 / 4 Stroke

Valves / Cylinder

Transmission (Gearbox) and Final Drive

Transmission Type

Chain

Gearbox

6-speed

Fuel and Emission Standards

Fuel System

Injection. Fuel Injection with YCC-T and YCC-I

Fuel Control

DOHC

Fuel Capacity

18.16 litres / 4.80 gallons

Suspension

Front Suspension

43mm inverted fork

Front Suspension Travel

119 mm / 4.7 inches

Front Wheel Travel

119 mm / 4.7 inches

Rear Suspension

Single shock w/piggyback reservoir

Rear Wheel Travel

51 mm / 2.0 inches

Tires and Rims

Front Tire Dimensions

120/70-ZR17

Rear Tire Dimensions

190/55-ZR17

Brakes

Front Brakes

Double disc

Front Brake Diameter

310 mm / 12.2 inches

Rear Brakes

Single disc

Rear Brake Diameter

220 mm / 8.7 inches

Notes, Comments and Warranty Information

Colour Options

Raven/Candy Red, Pearl White/Rapid Red, Cadmium Yellow, Team Yamaha Blue/White

Yamaha YZF-R1 2009 specs
