Yamaha YZ250 2012 specifications pictures and more for the 2012 Yamaha YZ250 in South Africa brought to you by Motomedia

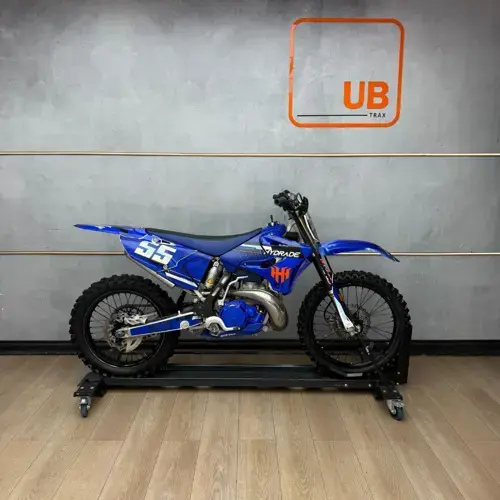

Yamaha YZ250 2012 motorcycle info

Main Detail

Make

Yamaha

Model

YZ250

Year

2012

Dimensions and Weight

Ground Clearance

381 mm / 15.0 inches

Overall Height

1,064 mm / 41.9 inches

Overall Length

2,177 mm / 85.7 inches

Overall Width

828 mm / 32.6 inches

Kerb Weight

103.0 kg / 227.0 pounds

Wheelbase

1,481 mm / 58.3 inches

Engine and Exhaust

Bore / Stroke

66.4 x 72.0 mm / 2.6 x 2.8 inches

Engine Capacity

249.00 cc / 15.19 cubic inches

Compression

8.9:1

Engine Detail

Reed-valve inducted

Engine Type

Single cylinder, two-stroke

Ignition

CDI

Starter

Electric

Valves / Cylinder

Transmission (Gearbox) and Final Drive

Transmission Type

Chain

Gearbox

5-speed

Clutch

Multiplate, wet

Drive line

Constant-mesh 5-speed

Lubrication System

Wet sump

Fuel and Emission Standards

Fuel System

Carburettor. Keihin PWK38S

Fuel Control

Double Overhead Cams/Twin Cam (DOHC)

Fuel Capacity

7.95 litres / 2.10 gallons

Suspension

Front Suspension

Speed-Sensitive System inverted fork

Front Suspension Travel

300 mm / 11.8 inches

Front Wheel Travel

300 mm / 11.8 inches

Rear Suspension

Fully adjustable single shock

Rear Wheel Travel

315 mm / 12.4 inches

Tires and Rims

Front Tire

21/7-10

Front Tire Dimensions

80/100-21

Rear Tire

20/10-9

Rear Tire Dimensions

110/90-19

Brakes

Front Brakes

Single disc. Hydraulic

Front Brake Diameter

250 mm / 9.8 inches

Rear Brakes

Single disc. Hydraulic

Rear Brake Diameter

245 mm / 9.6 inches

Instrumentation and Lighting

Lighting

Dual 30W Krypton multireflector Headlights and 3.9/0.5W LED Brake light

Notes, Comments and Warranty Information

Factory Warranty

30 Day (Limited Factory Warranty)

Colour Options

Blue/White, White/Red
