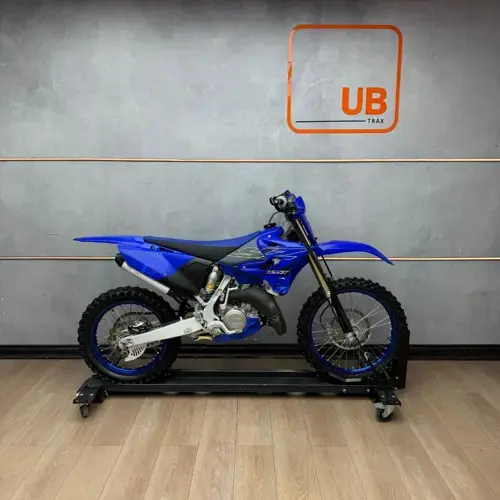

Yamaha YZ125X 2022 specifications pictures and more for the 2022 Yamaha YZ125X in South Africa brought to you by Motomedia

Yamaha YZ125X 2022 motorcycle info

Main Detail

Make

Yamaha

Model

YZ125X

Year

2022

Dimensions and Weight

Ground Clearance

351 mm / 13.8 inches

Overall Height

1285 mm / 50.6 inches

Overall Length

2141 mm / 84.3 inches

Overall Width

825 mm / 32.5 inches

Trail

117 mm / 4.6 inches

Kerb Weight

94.8 kg / 209.0 pounds

Wheelbase

1455 mm / 57.3 inches

Engine and Exhaust

Bore / Stroke

54.0 x 54.5 mm / 2.1 x 2.1 inches

Engine Capacity

125.0 cc / 7.63 cubic inches

Compression

8.8:1

Engine Detail

Reed-valve-inducted

Engine Type

Single cylinder, two-stroke

Ignition

CDI

Starter

Kick

Transmission (Gearbox) and Final Drive

Transmission Type

Chain (final drive)

Gearbox

6-speed

Clutch

O-ring chain

Lubrication System

Premix

Oil Capacity

0.70 litres / 0.74 US quarts

Fuel and Emission Standards

Fuel System

Carburettor. Mikuni TMX 38

Fuel Capacity

8.00 litres / 2.11 US gallons

Suspension

Front Suspension

KYB® Speed-Sensitive System inverted fork; fully adjustable

Front Wheel Travel

300 mm / 11.8 inches

Rear Suspension

KYB® single shock; fully adjustable

Rear Wheel Travel

315 mm / 12.4 inches

Tires and Rims

Front Tire

90/90-21

Rims

Dunlop® Geomax AT81 tires

Brakes

Front Brakes

Single disc. Hydraulic.

Rear Brakes

Single disc. Hydraulic.

Notes, Comments and Warranty Information

Factory Warranty

30 Day Limited Factory Warranty

Colour Options

Team Yamaha Blue
