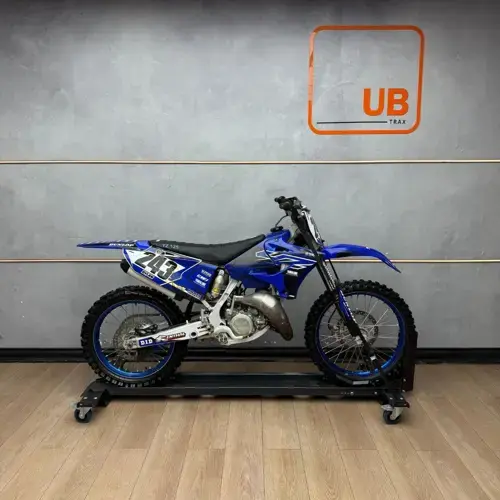

Yamaha YZ125 2020 specifications pictures and more for the 2020 Yamaha YZ125 in South Africa brought to you by Motomedia

Yamaha YZ125 2020 motorcycle info

Main Detail

Make

Yamaha

Model

YZ125

Year

2020

Dimensions and Weight

Ground Clearance

366 mm / 14.4 inches

Overall Height

1295 mm / 51.0 inches

Overall Length

2136 mm / 84.1 inches

Overall Width

828 mm / 32.6 inches

Trail

109 mm / 4.3 inches

Kerb Weight

93.9 kg / 207.0 pounds

Wheelbase

1443 mm / 56.8 inches

Engine and Exhaust

Bore / Stroke

54.0 x 54.5 mm / 2.1 x 2.1 inches

Engine Capacity

125.0 cc / 7.63 cubic inches

Compression

10.7:1

Engine Detail

Reed-valve-inducted

Engine Type

Single cylinder, two-stroke

Ignition

CDI

Starter

Kick

Transmission (Gearbox) and Final Drive

Transmission Type

Chain (final drive)

Gearbox

6-speed

Clutch

Multiplate wet clutch

Lubrication System

Premix

Oil Capacity

0.70 litres / 0.74 US quarts

Fuel and Emission Standards

Fuel System

Carburettor. Mikuni TMX 38

Fuel Capacity

8.00 litres / 2.11 US gallons

Suspension

Front Suspension

KYB® Speed-Sensitive System inverted fork; fully adjustable

Front Wheel Travel

300 mm / 11.8 inches

Rear Suspension

KYB® single shock; fully adjustable

Rear Wheel Travel

315 mm / 12.4 inches

Tires and Rims

Front Tire

80/100-21

Rims

Dunlop® MX52

Brakes

Front Brakes

Single disc. Hydraulic.

Rear Brakes

Single disc. Hydraulic.

Notes, Comments and Warranty Information

Factory Warranty

30 Day Limited Factory Warranty

Colour Options

Team Yamaha Blue

Yamaha YZ125 2020 specs
