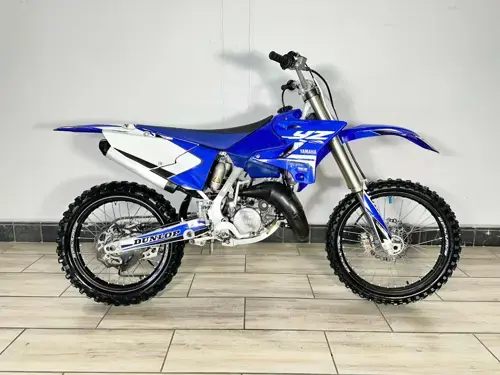

Yamaha YZ125 2016 specifications pictures and more for the 2016 Yamaha YZ125 in South Africa brought to you by Motomedia

Yamaha YZ125 2016 specs

Latest motor bike specifications and pictures for the 2016 Yamaha YZ125.



Yamaha YZ125 2016 motorcycle info

Main Detail

Make
Yamaha
Model
YZ125
Year
2016
Category
Cross / motocross

Dimensions and Weight

Ground Clearance
366 mm / 14.4 inches
Overall Height
1,295 mm / 51.0 inches
Overall Length
2,136 mm / 84.1 inches
Overall Width
828 mm / 32.6 inches
Kerb Weight
94.8 kg / 209.0 pounds
Wheelbase
1,443 mm / 56.8 inches

Engine and Exhaust

Bore / Stroke
54.0 x 54.5 mm / 2.1 x 2.1 inches
Compression
8.6:1
Engine Detail
Reed-valve-inducted
Engine Type
Single cylinder, two-stroke
Ignition
CDI
Starter
Kick

Transmission (Gearbox) and Final Drive

Transmission Type
Chain
Gearbox
6-speed

Fuel and Emission Standards

Fuel System
Carburettor. Mikuni TMX 38
Fuel Capacity
7.95 litres / 2.10 gallons

Suspension

Front Suspension
Speed-sensitive system inverted fork
Front Wheel Travel
300 mm / 11.8 inches
Rear Suspension
Fully adjustable single shock
Rear Wheel Travel
315 mm / 12.4 inches

Tires and Rims

Front Tire
80/100-21
Rear Tire
100/90-19

Brakes

Front Brakes
Single disc. Hydraulic.
Front Brake Diameter
250 mm / 9.8 inches
Rear Brakes
Single disc. Hydraulic.
Rear Brake Diameter
245 mm / 9.6 inches

Notes, Comments and Warranty Information

Factory Warranty
30 Day Limited Factory Warranty
Colour Options
Team Yamaha Blue/White
