Yamaha YZ125 2011 specifications pictures and more for the 2011 Yamaha YZ125 in South Africa brought to you by Motomedia

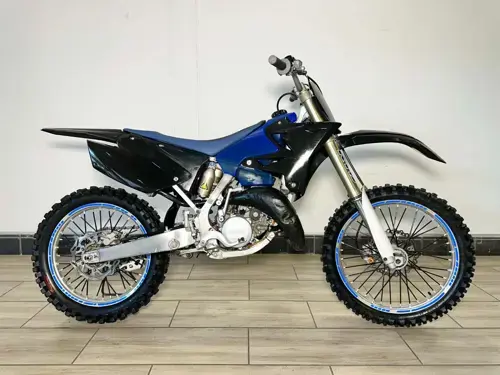

Yamaha YZ125 2011 motorcycle info

Main Detail

Make

Yamaha

Model

YZ125

Year

2011

Dimensions and Weight

Ground Clearance

386 mm / 15.2 inches

Overall Height

1,316 mm / 51.8 inches

Overall Length

2,136 mm / 84.1 inches

Overall Width

828 mm / 32.6 inches

Kerb Weight

94.4 kg / 208.0 pounds

Wheelbase

1,443 mm / 56.8 inches

Engine and Exhaust

Bore / Stroke

54.0 x 54.5 mm / 2.1 x 2.1 inches

Engine Capacity

124.00 cc / 7.57 cubic inches

Compression

8.6:1

Engine Type

Single cylinder, two-stroke

Ignition

CDI

Starter

Electric

Transmission (Gearbox) and Final Drive

Transmission Type

Chain

Gearbox

6-speed

Drive line

2WD; Sealed O-Ring Chain, Eccentric Adjustment

Lubrication System

Dry sump

Oil Capacity

0.70 litres / 0.05 quarts

Fuel and Emission Standards

Fuel System

Carburettor. Mikuni TMX 38

Fuel Control

Double Overhead Cams/Twin Cam (DOHC)

Fuel Capacity

7.95 litres / 2.10 gallons

Suspension

Front Suspension

Speed-sensitive system inverted fork

Front Suspension Travel

300 mm / 11.8 inches

Front Wheel Travel

300 mm / 11.8 inches

Rear Suspension

Fully adjustable single shock

Rear Wheel Travel

315 mm / 12.4 inches

Tires and Rims

Front Tire

21/7-10

Front Tire Dimensions

80/100-M21

Rear Tire

20/10-9

Rear Tire Dimensions

100/90-M19

Brakes

Front Brakes

Single disc. Wave

Front Brake Diameter

250 mm / 9.8 inches

Rear Brakes

Single disc. Wave

Rear Brake Diameter

245 mm / 9.6 inches

Instrumentation and Lighting

Lighting

Dual 30W Krypton multireflector Headlights and 3.9/0.5W LED Brake light

Notes, Comments and Warranty Information

Factory Warranty

30 Day (Limited Factory Warranty)

Colour Options

Team Yamaha Blue/White

Yamaha YZ125 2011 specs
