Yamaha XT660R 2011 specifications pictures and more for the 2011 Yamaha XT660R in South Africa brought to you by Motomedia

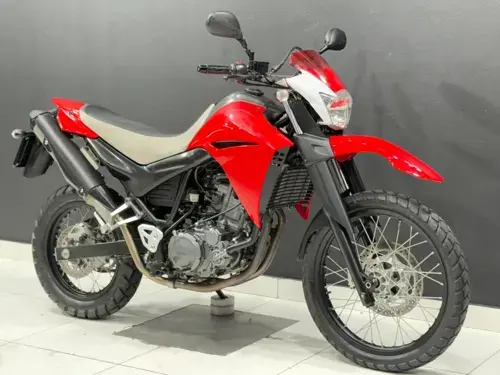

Yamaha XT660R 2011 specs

Latest motor bike specifications and pictures for the 2011 Yamaha XT660R.



Yamaha XT660R 2011 motorcycle info

Main Detail

Make
Yamaha
Model
XT660R
Year
2011
Category
Enduro / Off-Road

Performance and Speed

Power to Weight Ratio
0.2869 HP/kg
Torque
60.00 Nm (6.1 kgf-m or 44.3 ft.lbs) @ 6100

Dimensions and Weight

Dry Weight
165.0 kg / 363.8 pounds
Ground Clearance
210 mm / 8.3 inches
Overall Height
1,230 mm / 48.4 inches
Overall Length
2,240 mm / 88.2 inches
Overall Width
845 mm / 33.3 inches
Trail
107 mm / 4.2 inches
Kerb Weight
181.0 kg / 399.0 pounds
Wheelbase
1,505 mm / 59.3 inches

Engine and Exhaust

Bore / Stroke
100.0 x 84.0 mm / 3.9 x 3.3 inches
Engine Capacity
660.00 cc / 40.27 cubic inches
Compression
10.0:1
Engine Type
Single cylinder, four-stroke
Ignition
TCI
Starter
Electric
Valves / Cylinder
4

Transmission (Gearbox) and Final Drive

Transmission Type
Chain
Gearbox
5-speed
Clutch
Wet, multiple-disc coil spring
Drive line
Constant Mesh, 5-speed
Lubrication System
Dry sump
Oil Capacity
2.90 litres / 0.19 quarts

Fuel and Emission Standards

Fuel System
Injection. EFI
Fuel Control
SOHC
Fuel Capacity
15.00 litres / 3.96 gallons

Suspension

Front Suspension
Telescopic forks
Front Suspension Travel
225 mm / 8.9 inches
Front Wheel Travel
127 mm / 5.0 inches
Rear Suspension
Swingarm
Rear Wheel Travel
127 mm / 5.0 inches

Tires and Rims

Front Tire
18/7-Ma8
Front Tire Dimensions
90/90-M21
Rear Tire
18/9-Ma8
Rear Tire Dimensions
130/80-M17

Brakes

Front Brakes
Single disc
Front Brake Diameter
298 mm / 11.7 inches
Rear Brakes
Single disc
Rear Brake Diameter
245 mm / 9.6 inches

Instrumentation and Lighting

Lighting
None

Notes, Comments and Warranty Information

Factory Warranty
6 Month (Limited Factory Warranty)
Colour Options
Blue, black
