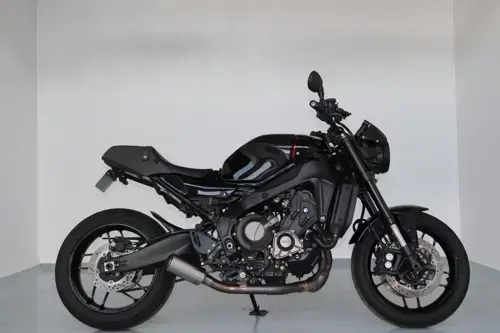

Yamaha XSR900 2023 specifications pictures and more for the 2023 Yamaha XSR900 in South Africa brought to you by Motomedia

Yamaha XSR900 2023 motorcycle info

Main Detail

Make

Yamaha

Model

XSR900

Year

2023

Performance and Speed

Torque

93.0 Nm (9.5 kgf-m or 68.6 ft.lbs) @ 7000 Revolutions">RPM

Dimensions and Weight

Ground Clearance

140 mm / 5.5 inches

Overall Height

1155 mm / 45.5 inches

Overall Length

2155 mm / 84.8 inches

Overall Width

860 mm / 33.9 inches

Trail

108 mm / 4.3 inches

Kerb Weight

193.0 kg / 425.5 pounds

Wheelbase

1495 mm / 58.9 inches

Engine and Exhaust

Bore / Stroke

78.0 x 62.1 mm / 3.1 x 2.4 inches

Engine Capacity

890.0 cc / 54.31 cubic inches

Compression

11.5:1

Engine Detail

Crossplane crankshaft

Engine Type

In-line three, four-stroke

Ignition

TCI

Starter

Electric

Valves / Cylinder

Transmission (Gearbox) and Final Drive

Transmission Type

Chain (final drive)

Gearbox

6-speed

Clutch

Multiplate assist-and-slipper wet clutch

Drive line

Constant mesh

Lubrication System

Wet sump

Oil Capacity

3.50 litres / 3.7 US quarts

Fuel and Emission Standards

Fuel System

Injection

Fuel Control

Double Overhead Cams/Twin Cam (DOHC)

Fuel Consumption

4.80 litres/100 km (20.8 km/l or 49.00 mpg)

Fuel Capacity

14.00 litres / 3.70 US gallons

Emission Details

Euro 5

Greenhouse Gases

111.4 CO2 g/km. (CO2 - Carbon dioxide emission)

Suspension

Front Suspension

41mm inverted fork, adjustable preload, compression and rebound

Front Wheel Travel

130 mm / 5.1 inches

Rear Suspension

Single shock, adjustable preload and rebound damping

Rear Wheel Travel

137 mm / 5.4 inches

Tires and Rims

Front Tire

120/70-ZR17

Rims

10-spoke cast aluminum. Bridgestone® Battlax Hypersport S22 tires.

Brakes

Front Brakes

Double disc. ABS. Hydraulic.

Rear Brakes

Single disc. ABS. Hydraulic.

Instrumentation and Lighting

Instruments

LCD panel

Lighting

LED headlight

Notes, Comments and Warranty Information

Comments

Traction Control.

Factory Warranty

1 Year Limited Factory Warranty.

Colour Options

Legend Blue
