Yamaha TMAX 2009 specifications pictures and more for the 2009 Yamaha TMAX in South Africa brought to you by Motomedia

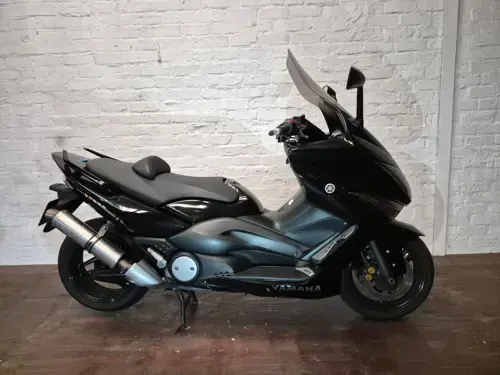

Yamaha TMAX 2009 specs

Latest motor bike specifications and pictures for the 2009 Yamaha TMAX.



Yamaha TMAX 2009 motorcycle info

Main Detail

Make
Yamaha
Model
TMAX
Year
2009
Category
Scooter

Dimensions and Weight

Ground Clearance
124 mm / 4.9 inches
Overall Height
1,445 mm / 56.9 inches
Overall Length
2,195 mm / 86.4 inches
Overall Width
775 mm / 30.5 inches
Kerb Weight
221.8 kg / 489.0 pounds
Wheelbase
1,580 mm / 62.2 inches

Engine and Exhaust

Bore / Stroke
66.0 x 73.0 mm / 2.6 x 2.9 inches
Engine Capacity
499.00 cc / 30.45 cubic inches
Compression
11.0:1
Engine Type
Single cylinder
Ignition
Digital TCI
Starter
Electric
2 / 4 Stroke
4

Transmission (Gearbox) and Final Drive

Transmission Type
Belt
Clutch
Wet, multiple-disc automatic centrifugal

Fuel and Emission Standards

Fuel System
Injection. Electronic fuel injection
Fuel Capacity
15.14 litres / 4.00 gallons

Suspension

Front Suspension
43mm telescopic forks
Rear Suspension
Swingarm

Tires and Rims

Front Tire Dimensions
120/70-H15
Rear Tire Dimensions
160/60-H15

Brakes

Front Brakes
Single disc
Front Brake Diameter
267 mm / 10.5 inches
Rear Brakes
Single disc
Rear Brake Diameter
267 mm / 10.5 inches

Notes, Comments and Warranty Information

Colour Options
Deep Blue, Cadmium Yellow
