Yamaha PW50 2017 specifications pictures and more for the 2017 Yamaha PW50 in South Africa brought to you by Motomedia

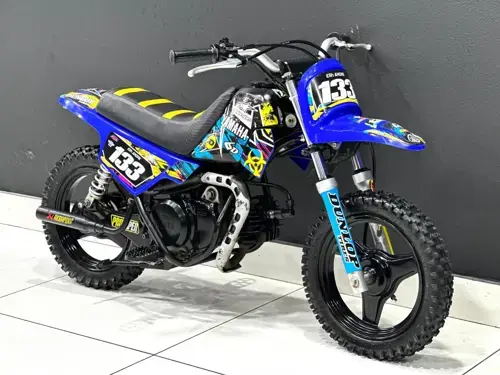

Yamaha PW50 2017 motorcycle info

Main Detail

Make

Yamaha

Model

PW50

Year

2017

Dimensions and Weight

Ground Clearance

104 mm / 4.1 inches

Overall Height

714 mm / 28.1 inches

Overall Length

1,245 mm / 49.0 inches

Overall Width

574 mm / 22.6 inches

Trail

50 mm / 2.0 inches

Kerb Weight

39.0 kg / 86.0 pounds

Wheelbase

856 mm / 33.7 inches

Engine and Exhaust

Bore / Stroke

40.0 x 39.2 mm / 1.6 x 1.5 inches

Engine Capacity

49.00 cc / 2.99 cubic inches

Compression

6.0:1

Engine Detail

Reed-valve inducted

Engine Type

Single cylinder, two-stroke

Ignition

CDI

Starter

Kick

Transmission (Gearbox) and Final Drive

Transmission Type

Shaft drive (cardan)

Gearbox

Automatic

Clutch

Wet centrifugal automatic clutch

Lubrication System

Autolube oil injection system

Fuel and Emission Standards

Fuel System

Carburettor. Mikuni VM12/1

Fuel Capacity

2.01 litres / 0.53 gallons

Suspension

Front Suspension

Telescopic fork

Front Wheel Travel

61 mm / 2.4 inches

Rear Suspension

Unit swingarm

Rear Wheel Travel

51 mm / 2.0 inches

Tires and Rims

Front Tire

2.50-10

Rear Tire

2.50-10

Rims

Mag-style wheels

Brakes

Front Brakes

Expanding brake (drum brake)

Rear Brakes

Expanding brake (drum brake)

Notes, Comments and Warranty Information

Factory Warranty

90 Day Limited Factory Warranty

Colour Options

Blue/White

Yamaha PW50 2017 specs
