Yamaha MT-09 SP 2023 specifications pictures and more for the 2023 Yamaha MT-09 SP in South Africa brought to you by Motomedia

Yamaha MT-09 SP 2023 specs

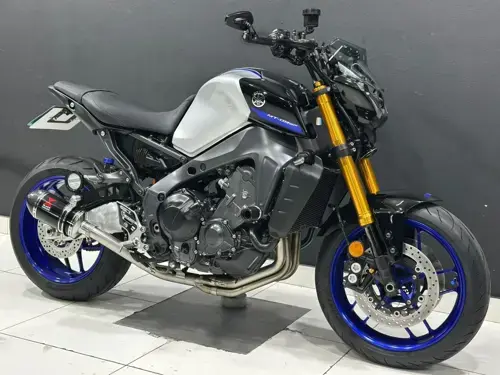

Latest motor bike specifications and pictures for the 2023 Yamaha MT-09 SP.



Yamaha MT-09 SP 2023 motorcycle info

Main Detail

Make
Yamaha
Model
MT-09 SP
Year
2023
Category
Naked bike

Performance and Speed

Torque
93.0 Nm (9.5 kgf-m or 68.6 ft.lbs) @ 7000 Revolutions">RPM

Dimensions and Weight

Ground Clearance
140 mm / 5.5 inches
Overall Height
1190 mm / 46.9 inches
Overall Length
2090 mm / 82.3 inches
Overall Width
795 mm / 31.3 inches
Trail
108 mm / 4.3 inches
Kerb Weight
190.1 kg / 419.0 pounds
Wheelbase
1430 mm / 56.3 inches

Engine and Exhaust

Bore / Stroke
78.0 x 62.1 mm / 3.1 x 2.4 inches
Engine Capacity
890.0 cc / 54.31 cubic inches
Compression
11.5:1
Engine Type
In-line three, four-stroke
Ignition
Transistor Controlled Ignition
Starter
Electric
Valves / Cylinder
4

Transmission (Gearbox) and Final Drive

Transmission Type
Chain   (final drive)
Gearbox
6-speed
Clutch
Multiplate, assist and slipper clutch
Lubrication System
Wet sump
Oil Capacity
3.50 litres / 3.7 US quarts

Fuel and Emission Standards

Fuel System
Injection
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Fuel Consumption
5.00 litres/100 km (20.0 km/l or 47.04 mpg)
Fuel Capacity
14.00 litres / 3.70 US gallons
Emission Details
Euro 5
Greenhouse Gases
116.0 CO2 g/km. (CO2 - Carbon dioxide emission)

Suspension

Front Suspension
41mm KYB inverted fork, adjustable preload, high/low speed compression and rebound
Front Wheel Travel
130 mm / 5.1 inches
Rear Suspension
Öhlins single shock, adjustable preload, compression and rebound damping;
Rear Wheel Travel
122 mm / 4.8 inches

Tires and Rims

Front Tire
120/70-ZR17

Brakes

Front Brakes
Double disc. ABS. Hydraulic.
Rear Brakes
Single disc. ABS. Hydraulic.

Instrumentation and Lighting

Instruments
3.5-inch Color TFT Display
Lighting
LED lights

Notes, Comments and Warranty Information

Comments
Six-Axis IMU. Traction Control. Slide Control System. Cruise control.
Factory Warranty
1 Year
Colour Options
Icon Performance (blue/grey)
