Yamaha FJR 1300 2006 specifications pictures and more for the 2006 Yamaha FJR 1300 in South Africa brought to you by Motomedia

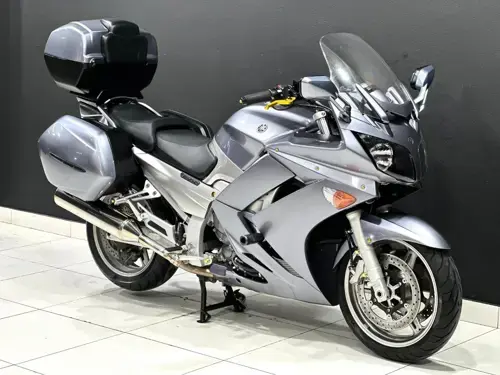

Yamaha FJR 1300 2006 motorcycle info

Main Detail

Make

Yamaha

Model

FJR 1300

Year

2006

Performance and Speed

Power to Weight Ratio

0.5279 HP/kg

Torque

134.40

Dimensions and Weight

Dry Weight

268.0 kg / 590.8 pounds

Ground Clearance

135 mm / 5.3 inches

Overall Height

1,330 mm / 52.4 inches

Overall Length

2,240 mm / 88.2 inches

Overall Width

745 mm / 29.3 inches

Wheelbase

1,550 mm / 61.0 inches

Engine and Exhaust

Bore / Stroke

79.0 x 66.2 mm / 3.1 x 2.6 inches

Engine Capacity

1298.00 cc / 79.20 cubic inches

Compression

10.8:1

Engine Type

In-line four

Ignition

TCI

Starter

Electric

2 / 4 Stroke

Valves / Cylinder

Transmission (Gearbox) and Final Drive

Transmission Type

Chain

Gearbox

5-speed

Clutch

Wet, multiple disc

Lubrication System

Wet sump

Fuel and Emission Standards

Fuel System

Injection. Electronic fuel injection

Fuel Control

DOHC

Fuel Capacity

25.00 litres / 6.61 gallons

Suspension

Front Suspension

Telescopic fork, 48mm

Front Suspension Travel

135 mm / 5.3 inches

Front Wheel Travel

135 mm / 5.3 inches

Rear Suspension

Swingarm (Link-type)

Rear Wheel Travel

125 mm / 4.9 inches

Tires and Rims

Front Tire Dimensions

120/70-ZR17

Rear Tire Dimensions

180/55-ZR17

Brakes

Front Brakes

Double disc

Front Brake Diameter

320 mm / 12.6 inches

Rear Brakes

Single disc

Rear Brake Diameter

282 mm / 11.1 inches
