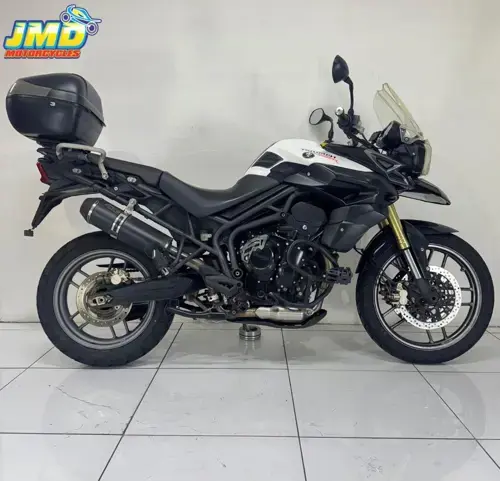

Triumph Tiger 800XC 2012 specifications pictures and more for the 2012 Triumph Tiger 800XC in South Africa brought to you by Motomedia

Triumph Tiger 800XC 2012 motorcycle info

Main Detail

Make

Triumph

Model

Tiger 800XC

Year

2012

Performance and Speed

Power to Weight Ratio

0.0541 HP/kg

Torque

78.65 Nm (8.0 kgf-m or 58.0 ft.lbs) @ 7850

Dimensions and Weight

Dry Weight

364.0 kg / 802.5 pounds

Overall Height

1,349 mm / 53.1 inches

Overall Length

2,212 mm / 87.1 inches

Overall Width

864 mm / 34.0 inches

Kerb Weight

215.0 kg / 474.0 pounds

Wheelbase

1,567 mm / 61.7 inches

Engine and Exhaust

Bore / Stroke

74.0 x 61.9 mm / 2.9 x 2.4 inches

Engine Capacity

799.00 cc / 48.75 cubic inches

Compression

12.0:1

Engine Type

In-line three, four-stroke

Ignition

Digital-inductive type via engine management system

Starter

Electric

Valves / Cylinder

Exhaust system

Stainless steel 3 into 1, high level stainless steel silencer

Transmission (Gearbox) and Final Drive

Transmission Type

Chain

Gearbox

6-speed

Clutch

Wet. multi-plate

Drive line

X ring chain. Primary drive: Gear.

Fuel and Emission Standards

Fuel System

Injection. Multipoint sequential electronic fuel injection with SAI

Fuel Control

DOHC

Fuel Consumption

5.74 litres/100 km (17.4 km/l or 40.98 mpg)

Fuel Capacity

18.93 litres / 5.00 gallons

Greenhouse Gases

133.2 CO

Suspension

Front Suspension

Showa 45mm upside down forks. 220mm travel

Rear Suspension

Showa monoshock with remote oil reservoir. hydraulically adjustable preload. rebound damping adjustment. 215mm rear wheel travel

Tires and Rims

Front Tire

25/8-12

Front Tire Dimensions

90/90-ZR21

Rear Tire

25/10-12

Rear Tire Dimensions

150/70-ZR17

Rims

Aluminum rim

Brakes

Front Brakes

Double disc. ABS

Front Brake Diameter

308 mm / 12.1 inches

Rear Brakes

Single disc. ABS

Rear Brake Diameter

255 mm / 10.0 inches

Instrumentation and Lighting

Instruments

LCD multi-functional instrument pack with digital speedometer, trip computer, analogue tachometer, gear position indicator, fuel gauge, service indicator, TPMS ready, switchable ABS and clock

Notes, Comments and Warranty Information

Comments

4W/2WD. Automatic Transmission with Hi/Lo Range and Reverse. Slip Limited Front Differential. DC 12V 10A 120W electric outlet. Made in Taiwan.

Colour Options

Phantom Black. Crystal White. Intense Orange

Triumph Tiger 800XC 2012 specs
