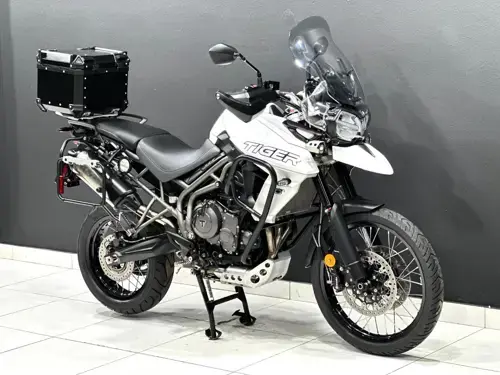

Triumph Tiger 800 XCa 2019 specifications pictures and more for the 2019 Triumph Tiger 800 XCa in South Africa brought to you by Motomedia

Triumph Tiger 800 XCa 2019 motorcycle info

Main Detail

Make

Triumph

Model

Tiger 800 XCa

Year

2019

Performance and Speed

Power to Weight Ratio

0.4567 HP/kg

Torque

79.0 Nm (8.1 kgf-m or 58.3 ft.lbs) @ 8050 Revolutions">RPM

Dimensions and Weight

Dry Weight

208.0 kg / 458.6 pounds

Overall Height

1390 mm / 54.7 inches

Overall Length

2215 mm / 87.2 inches

Overall Width

805 mm / 31.7 inches

Trail

94 mm / 3.7 inches

Wheelbase

1545 mm / 60.8 inches

Engine and Exhaust

Bore / Stroke

74.1 x 61.9 mm / 2.9 x 2.4 inches

Engine Capacity

800.0 cc / 48.82 cubic inches

Compression

11.3:1

Engine Type

In-line three, four-stroke

Starter

Electric

Valves / Cylinder

Exhaust system

Stainless steel 3 into 1. high level stainless steel silencer

Transmission (Gearbox) and Final Drive

Transmission Type

Chain (final drive)

Gearbox

6-speed

Clutch

Wet. multi-plate

Drive line

O ring chain

Oil Capacity

3.70 litres / 3.91 US quarts

Fuel and Emission Standards

Fuel System

Injection. Multipoint sequential electronic fuel injection

Fuel Control

Double Overhead Cams/Twin Cam (DOHC)

Fuel Consumption

5.74 litres/100 km (17.4 km/l or 40.98 mpg)

Fuel Capacity

19.00 litres / 5.02 US gallons

Greenhouse Gases

133.2 CO2 g/km. (CO2 - Carbon dioxide emission)

Suspension

Front Suspension

WP 1.69 in (43 mm) upside down forks, with adjustable rebound and compression damping

Front Wheel Travel

220 mm / 8.7 inches

Rear Suspension

WP monoshock with remote oil reservoir, hydraulically adjustable preload

Rear Wheel Travel

215 mm / 8.5 inches

Tires and Rims

Front Tire

90/90-21

Rims

36-spoke aluminium rims

Brakes

Front Brakes

Double disc. Floating discs, Brembo 2-piston sliding calipers, Switchable ABS.

Rear Brakes

Single disc. Nissin single piston sliding caliper, Switchable ABS.

Instrumentation and Lighting

Instruments

LCD multi-functional instrument pack with digital speedometer, trip computer, analogue tachometer, gear position indicator, fuel gauge, service indicator, switchable ABS and clock

Triumph Tiger 800 XCa 2019 specs
