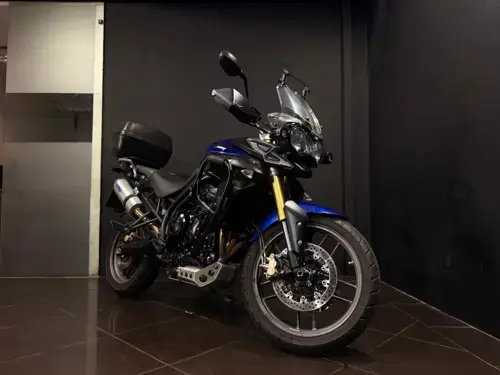

Triumph Tiger 800 2013 specifications pictures and more for the 2013 Triumph Tiger 800 in South Africa brought to you by Motomedia

Triumph Tiger 800 2013 motorcycle info

Main Detail

Make

Triumph

Model

Tiger 800

Year

2013

Performance and Speed

Power to Weight Ratio

0.1102 HP/kg

Torque

79.00 Nm (8.1 kgf-m or 58.3 ft.lbs) @ 7850

Dimensions and Weight

Dry Weight

112.0 kg / 246.9 pounds

Ground Clearance

160 mm / 6.3 inches

Overall Height

1,350 mm / 53.1 inches

Overall Length

2,215 mm / 87.2 inches

Overall Width

795 mm / 31.3 inches

Kerb Weight

210.0 kg / 463.0 pounds

Wheelbase

1,530 mm / 60.2 inches

Engine and Exhaust

Bore / Stroke

74.0 x 61.9 mm / 2.9 x 2.4 inches

Engine Capacity

800.00 cc / 48.82 cubic inches

Engine Type

In-line three, four-stroke

Starter

Electric

Valves / Cylinder

Exhaust system

Stainless steel 3 into 1, high level stainless steel silencer

Transmission (Gearbox) and Final Drive

Transmission Type

Chain

Gearbox

6-speed

Clutch

Wet, multi-plate

Drive line

O ring chain

Oil Capacity

3.70 litres / 0.24 quarts

Fuel and Emission Standards

Fuel System

Injection. Multipoint sequential electronic fuel injection

Fuel Control

DOHC

Fuel Consumption

5.74 litres/100 km (17.4 km/l or 40.98 mpg)

Fuel Capacity

19.00 litres / 5.02 gallons

Greenhouse Gases

133.2 CO

Suspension

Front Suspension

Showa 43mm upside down forks, 180mm travel

Rear Suspension

Showa monoshock with hydraulically adjustable preload, 170mm rear wheel travel

Tires and Rims

Front Tire

80/90-18

Front Tire Dimensions

100/90-ZR19

Rear Tire

90/90-18.5

Rear Tire Dimensions

150/70-ZR17

Rims

Cast aluminum alloy 10-spoke

Brakes

Front Brakes

Double disc. Floating discs, Nissin 2-piston floating calipers, Optional ABS.

Front Brake Diameter

308 mm / 12.1 inches

Rear Brakes

Single disc. Nissin single piston floating caliper, Optional ABS.

Notes, Comments and Warranty Information

Comments

Sold in the Philippines.

Colour Options

Black, white, blue

Triumph Tiger 800 2013 specs
