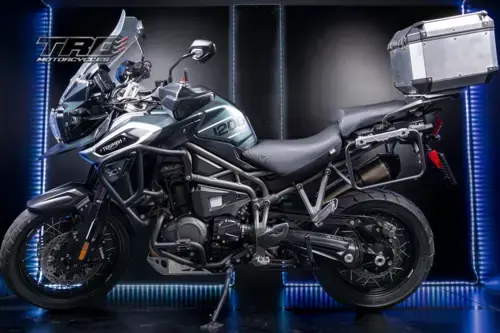

Triumph Tiger 1200 XCa 2020 specifications pictures and more for the 2020 Triumph Tiger 1200 XCa in South Africa brought to you by Motomedia

Triumph Tiger 1200 XCa 2020 motorcycle info

Main Detail

Make

Triumph

Model

Tiger 1200 XCa

Year

2020

Performance and Speed

Power to Weight Ratio

0.5685 HP/kg

Torque

122.0 Nm (12.4 kgf-m or 90.0 ft.lbs) @ 7600 Revolutions">RPM

Dimensions and Weight

Dry Weight

248.0 kg / 546.7 pounds

Overall Height

1540 mm / 60.6 inches

Overall Width

930 mm / 36.6 inches

Trail

100 mm / 3.9 inches

Wheelbase

1520 mm / 59.8 inches

Engine and Exhaust

Bore / Stroke

85.0 x 71.4 mm / 3.3 x 2.8 inches

Engine Capacity

1215.0 cc / 74.14 cubic inches

Compression

11.0:1

Engine Type

In-line three, four-stroke

Starter

Electric

Valves / Cylinder

Exhaust system

Stainless steel 3 into 1 side mounted stainless steel silencer

Transmission (Gearbox) and Final Drive

Transmission Type

Shaft drive (cardan) (final drive)

Gearbox

6-speed

Clutch

Wet. multi-plate

Oil Capacity

4.00 litres / 4.23 US quarts

Fuel and Emission Standards

Fuel System

Injection

Fuel Control

Double Overhead Cams/Twin Cam (DOHC)

Fuel Consumption

4.90 litres/100 km (20.4 km/l or 48.00 mpg)

Fuel Capacity

20.00 litres / 5.28 US gallons

Emission Details

Euro 4

Greenhouse Gases

113.7 CO2 g/km. (CO2 - Carbon dioxide emission)

Suspension

Front Suspension

WP 48 mm upside down forks, electronically adjustable damping,

Front Wheel Travel

190 mm / 7.5 inches

Rear Suspension

WP monoshock, electronically adjustable semi active damping,

Rear Wheel Travel

193 mm / 7.6 inches

Tires and Rims

Front Tire

120/70-R19

Rims

Cast aluminium alloy 10-spoke

Brakes

Front Brakes

Double disc. Floating discs, radially mounted monobloc Brembo calipers, 4-piston, switchable ABS

Rear Brakes

Single disc. Nissin 2-piston sliding caliper, Switchable ABS

Instrumentation and Lighting

Instruments

LCD instrument pack with digital speedometer, analogue tachometer, gear position indicator, fuel gauge, range to empty, service indicator, clock, air temperature, frost warning, hazard warning lights, trip computer, Tyre pressure monitoring system

Notes, Comments and Warranty Information

Factory Warranty

24 months unlimited mileage

Colour Options

Gray, White

Triumph Tiger 1200 XCa 2020 specs
