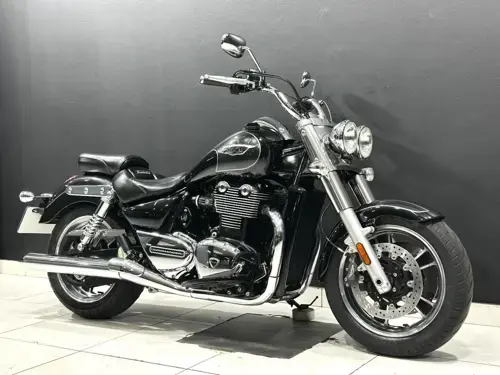

Triumph Thunderbird Commander 2016 specifications pictures and more for the 2016 Triumph Thunderbird Commander in South Africa brought to you by Motomedia

Triumph Thunderbird Commander 2016 motorcycle info

Main Detail

Make

Triumph

Model

Thunderbird Commander

Year

2016

Performance and Speed

Power to Weight Ratio

0.2965 HP/kg

Torque

151.00 Nm (15.4 kgf-m or 111.4 ft.lbs) @ 3550 Revolutions">RPM

Dimensions and Weight

Dry Weight

317.0 kg / 698.9 pounds

Overall Height

1,120 mm / 44.1 inches

Overall Length

2,340 mm / 92.1 inches

Overall Width

880 mm / 34.6 inches

Trail

135 mm / 5.3 inches

Kerb Weight

339.0 kg / 747.4 pounds

Wheelbase

1,615 mm / 63.6 inches

Engine and Exhaust

Bore / Stroke

107.1 x 94.3 mm / 4.2 x 3.7 inches

Compression

9.7:1

Engine Detail

270? firing interval

Engine Type

Twin, four-stroke

Ignition

Digital-inductive type via engine management system

Starter

Electric

Exhaust system

Chromed twin-skin stainless steel 2 into 2 headers, tandem forward mounted large-volume catalysts, chrome-plated silencers.

Transmission (Gearbox) and Final Drive

Transmission Type

Belt

Gearbox

6-speed

Clutch

Wet. multi-plate

Drive line

Toothed belt

Oil Capacity

4.20 litres / 0.28 quarts

Fuel and Emission Standards

Fuel System

Injection. Multipoint sequential electronic fuel injection. progressive linkage on throttle

Fuel Control

Double Overhead Cams/Twin Cam (DOHC)

Fuel Capacity

22.00 litres / 5.81 gallons

Suspension

Front Suspension

Showa 47mm forks.

Front Wheel Travel

120 mm / 4.7 inches

Rear Suspension

Showa chromed spring twin shocks with 5 position adjustable preload.

Rear Wheel Travel

109 mm / 4.3 inches

Tires and Rims

Front Tire

120/70-R19

Rear Tire

200/50-R17

Rims

Cast aluminum alloy 5-spoke

Brakes

Front Brakes

Double disc. Nissin 4-piston fixed calipers. ABS.

Front Brake Diameter

310 mm / 12.2 inches

Rear Brakes

Single disc. Brembo 2-piston floating caliper. ABS

Rear Brake Diameter

310 mm / 12.2 inches

Instrumentation and Lighting

Instruments

Analogue speedometer featuring integrated rev counter, scroll button on handlebars, LCD trip computer, fuel gauge and clock

Notes, Comments and Warranty Information

Factory Warranty

24 months unlimited mileage

Colour Options

Lithium Flame/Frozen Silver, Jet Black, Phantom Black Storm Grey

Triumph Thunderbird Commander 2016 specs
