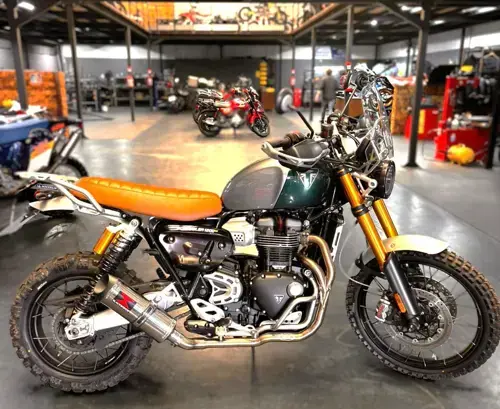

Triumph Scrambler 1200XE 2022 specifications pictures and more for the 2022 Triumph Scrambler 1200XE in South Africa brought to you by Motomedia

Triumph Scrambler 1200XE 2022 motorcycle info

Main Detail

Make

Triumph

Model

Scrambler 1200XE

Year

2022

Performance and Speed

Power to Weight Ratio

0.4300 HP/kg

Torque

110.0 Nm (11.2 kgf-m or 81.1 ft.lbs) @ 3950 Revolutions">RPM

Dimensions and Weight

Dry Weight

207.0 kg / 456.4 pounds

Overall Height

1250 mm / 49.2 inches

Overall Width

905 mm / 35.6 inches

Trail

129 mm / 5.1 inches

Wheelbase

1570 mm / 61.8 inches

Engine and Exhaust

Bore / Stroke

97.6 x 80.0 mm / 3.8 x 3.1 inches

Engine Capacity

1200.0 cc / 73.22 cubic inches

Compression

11.0:1

Engine Detail

270° crank angle parallel-twin

Engine Type

Twin, four-stroke

Starter

Electric

Valves / Cylinder

Exhaust system

Brushed 2 into 2 exhaust system with brushed high level silencers

Transmission (Gearbox) and Final Drive

Transmission Type

Chain (final drive)

Gearbox

6-speed

Clutch

Wet, multi-plate assist

Drive line

X ring chain

Oil Capacity

4.50 litres / 4.76 US quarts

Fuel and Emission Standards

Fuel System

Injection. Multipoint sequential electronic fuel injection

Fuel Control

Single Overhead Cams (SOHC)

Fuel Consumption

4.90 litres/100 km (20.4 km/l or 48.00 mpg)

Fuel Capacity

16.00 litres / 4.23 US gallons

Greenhouse Gases

113.7 CO2 g/km. (CO2 - Carbon dioxide emission)

Suspension

Front Suspension

Showa 47mm fully adjustable upside down forks

Front Wheel Travel

250 mm / 9.8 inches

Rear Suspension

Fully adjustable Ohlins twin shocks with piggy back reservoir

Rear Wheel Travel

250 mm / 9.8 inches

Tires and Rims

Front Tire

90/90-21

Rims

Spoked wheels, aluminum rims.

Brakes

Front Brakes

Double disc. Brembo 2-piston floating caliper. ABS.

Rear Brakes

Single disc. Brembo 2-piston floating caliper. ABS.

Instrumentation and Lighting

Instruments

TFT multifunctional instrument pack with digital speedometer, trip computer, digital tachometer, gear position indicator, fuel gauge, service indicator, clock and rider modes

Lighting

All-LED lighting with DRL headlight

Notes, Comments and Warranty Information

Comments

5 ride modes. Cruise control. USB charging. Immobilizer.

Factory Warranty

24 months unlimited milage

Colour Options

Cobalt Blue/Jet Black, Matte Jet Blacke/Matte Khaki Green, Sapphire Black

Triumph Scrambler 1200XE 2022 specs
