Triumph Rocket 3 R 2020 specifications pictures and more for the 2020 Triumph Rocket 3 R in South Africa brought to you by Motomedia

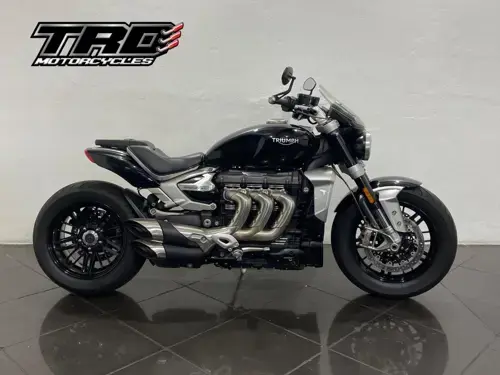

Triumph Rocket 3 R 2020 motorcycle info

Main Detail

Make

Triumph

Model

Rocket 3 R

Year

2020

Performance and Speed

Power to Weight Ratio

0.5688 HP/kg

Torque

221.0 Nm (22.5 kgf-m or 163.0 ft.lbs) @ 4000 Revolutions">RPM

Dimensions and Weight

Dry Weight

290.0 kg / 639.3 pounds

Overall Height

1065 mm / 41.9 inches

Overall Width

889 mm / 35.0 inches

Trail

135 mm / 5.3 inches

Wheelbase

1677 mm / 66.0 inches

Engine and Exhaust

Bore / Stroke

110.2 x 85.9 mm / 4.3 x 3.4 inches

Engine Capacity

2458.0 cc / 149.99 cubic inches

Engine Detail

Counter rotating crankshaft

Engine Type

In-line three, four-stroke

Starter

Electric

Exhaust system

Stainless 3-into-1 headers with 3 exit Arrow-branded silencer/CAT box

Transmission (Gearbox) and Final Drive

Transmission Type

Shaft drive (cardan) (final drive)

Gearbox

6-speed

Clutch

Wet, multi-plate hydraulically operated, torque assist

Fuel and Emission Standards

Fuel System

Injection

Fuel Control

Double Overhead Cams/Twin Cam (DOHC)

Fuel Consumption

6.82 litres/100 km (14.7 km/l or 34.49 mpg)

Fuel Capacity

18.00 litres / 4.76 US gallons

Emission Details

Euro 5

Greenhouse Gases

158.2 CO2 g/km. (CO2 - Carbon dioxide emission)

Suspension

Front Suspension

Showa 47 mm upside-down 1 1 cartridge front forks, compression and rebound adj.

Front Wheel Travel

120 mm / 4.7 inches

Rear Suspension

Fully adjustable Showa piggyback reservoir RSU with remote hydraulic preload adjuster

Rear Wheel Travel

107 mm / 4.2 inches

Tires and Rims

Front Tire

150/80-R17

Rims

Cast aluminum alloy 5 spoke

Brakes

Front Brakes

Double disc. Brembo M4.30 Stylema 4-piston radial monobloc calipers. ABS.

Rear Brakes

Single disc. Brembo 2-piston fixed calipers. ABS.

Instrumentation and Lighting

Instruments

TFT multi-functional instrument pack with digital speedometer, trip computer, digital tachometer, gear position indicator, fuel gauge, service indicator, ambient temperature, clock and rider modes (Rain/Road/Sport/Rider-configurable)

Notes, Comments and Warranty Information

Colour Options

Korosi Red, Phantom Black

Triumph Rocket 3 R 2020 specs
