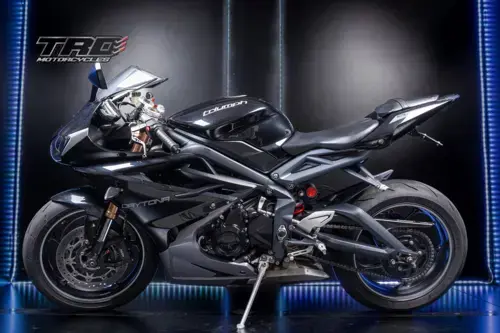

Triumph Daytona 675 2014 specifications pictures and more for the 2014 Triumph Daytona 675 in South Africa brought to you by Motomedia

Triumph Daytona 675 2014 motorcycle info

Main Detail

Make

Triumph

Model

Daytona 675

Year

2014

Performance and Speed

Torque

74.00 Nm (7.5 kgf-m or 54.6 ft.lbs) @ 11900

Dimensions and Weight

Overall Height

1,105 mm / 43.5 inches

Overall Length

2,020 mm / 79.5 inches

Overall Width

710 mm / 28.0 inches

Trail

88 mm / 3.5 inches

Kerb Weight

184.0 kg / 405.7 pounds

Wheelbase

1,395 mm / 54.9 inches

Engine and Exhaust

Bore / Stroke

76.0 x 49.6 mm / 3.0 x 2.0 inches

Engine Capacity

675.00 cc / 41.19 cubic inches

Compression

12.7:1

Engine Detail

Harley-Davidson V-Rod Revolution engine

Engine Type

In-line three, four-stroke

Ignition

Digital-inductive type via engine management system

Starter

Electric

Valves / Cylinder

Exhaust system

Stainless steel 3 into 1 system with valve in secondary and under seat silencer

Transmission (Gearbox) and Final Drive

Transmission Type

Chain

Gearbox

6-speed

Clutch

Wet. multi-plate

Drive line

O ring chain

Oil Capacity

3.60 litres / 0.24 quarts

Fuel and Emission Standards

Fuel System

Injection. Multipoint sequential electronic fuel injection with forced air induction and SAI

Fuel Control

DOHC

Fuel Capacity

17.40 litres / 4.60 gallons

Suspension

Front Suspension

KYB 41mm upside down forks with adjustable preload, rebound and high/low speed compression damping, 110mm travel

Rear Suspension

KYB monoshock with piggy back reservoir adjustable for preload, rebound and high/low speed compression damping, 130mm rear wheel travel

Tires and Rims

Front Tire Dimensions

120/70-ZR17

Rear Tire Dimensions

180/55-ZR17

Rims

Chrome wheels with transparent acrylic spokes

Brakes

Front Brakes

Double disc. Nissin 4-piston radial mono-block calipers. Switchable ABS.

Front Brake Diameter

308 mm / 12.1 inches

Rear Brakes

Single disc. Nissin single piston caliper. Switchable ABS.

Rear Brake Diameter

220 mm / 8.7 inches

Instrumentation and Lighting

Instruments

LCD multi-functional instrument pack with digital speedometer, trip computer, analogue tachometer, lap timer, gear position indicator and programmable gear change lights and clock, coded key immobiliser, TPMS ready and switchable ABS (where fitted).

Lighting

Xenon light,

Notes, Comments and Warranty Information

Comments

Made in the US.

Factory Warranty

2 year warranty unlimited mileage

Colour Options

Crystal White/Sapphire Blue, Diablo Red/Jet Black, Phantom Black/Graphite

Triumph Daytona 675 2014 specs
