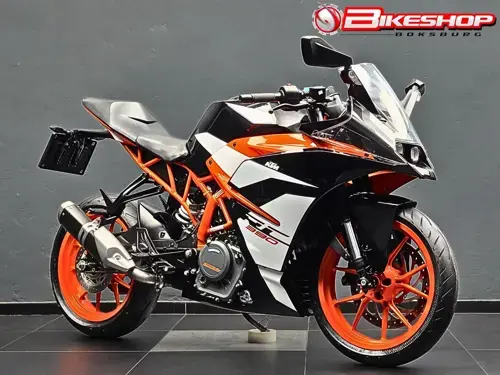

KTM RC 390 2017 specifications pictures and more for the 2017 KTM RC 390 in South Africa brought to you by Motomedia

KTM RC 390 2017 specs

Latest motor bike specifications and pictures for the 2017 KTM RC 390.



KTM RC 390 2017 motorcycle info

Main Detail

Make
KTM
Model
RC 390
Year
2017
Category
Sport

Performance and Speed

Power to Weight Ratio
0.2993 HP/kg

Dimensions and Weight

Dry Weight
147.0 kg / 324.1 pounds
Ground Clearance
179 mm / 7.0 inches
Wheelbase
1,340 mm / 52.8 inches

Engine and Exhaust

Bore / Stroke
89.0 x 60.0 mm / 3.5 x 2.4 inches
Engine Capacity
373.20 cc / 22.77 cubic inches
Compression
14.5:1
Engine Type
Single cylinder, four-stroke
Ignition
Bosch EMS with RBW
Starter
Electric

Transmission (Gearbox) and Final Drive

Transmission Type
Chain
Gearbox
6-speed
Clutch
Wet multi-disc clutch, mechanically actuated
Drive line
5/8 x 1/4 X Ring. Primary drive: 30:80.
Lubrication System
Semi-dry sump

Fuel and Emission Standards

Fuel System
Injection
Fuel Capacity
10.00 litres / 2.64 gallons

Suspension

Front Suspension
WP upside-down ? 43 mm
Front Wheel Travel
125 mm / 4.9 inches
Rear Suspension
WP Monoshock
Rear Wheel Travel
150 mm / 5.9 inches

Tires and Rims

Front Tire
95/75-R17
Rear Tire
115/75-R17

Brakes

Front Brakes
Single disc. ABS. Four-piston calipers.
Front Brake Diameter
300 mm / 11.8 inches
Rear Brakes
Single disc. ABS. Floating disc. Single-piston caliper.
Rear Brake Diameter
230 mm / 9.1 inches

Notes, Comments and Warranty Information

Colour Options
Black/white/orange
