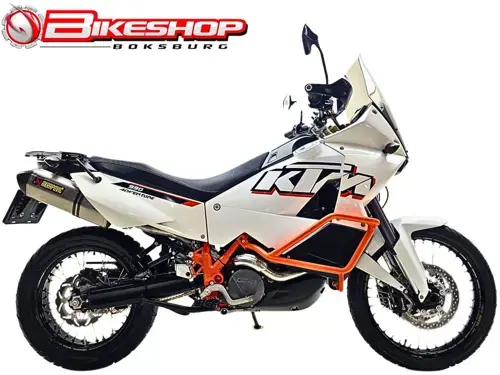

KTM 990 Adventure R 2012 specifications pictures and more for the 2012 KTM 990 Adventure R in South Africa brought to you by Motomedia

KTM 990 Adventure R 2012 motorcycle info

Main Detail

Make

KTM

Model

990 Adventure R

Year

2012

Performance and Speed

Power to Weight Ratio

0.5474 HP/kg

Torque

100.00 Nm (10.2 kgf-m or 73.8 ft.lbs) @ 6750

Dimensions and Weight

Dry Weight

207.0 kg / 456.4 pounds

Ground Clearance

301 mm / 11.9 inches

Trail

119 mm / 4.7 inches

Kerb Weight

173.0 kg / 381.4 pounds

Wheelbase

1,570 mm / 61.8 inches

Engine and Exhaust

Bore / Stroke

101.0 x 62.4 mm / 4.0 x 2.5 inches

Engine Capacity

999.00 cc / 60.96 cubic inches

Compression

11.5:1

Engine Detail

V 75°

Engine Type

V2, four-stroke

Ignition

Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment

Starter

Electric

Valves / Cylinder

Exhaust system

Aluminum XC

Transmission (Gearbox) and Final Drive

Transmission Type

Chain

Gearbox

6-speed

Clutch

Wet multi-disc clutch / hydraulically operated

Drive line

16:42. Primary drive: 35:67.

Lubrication System

Dry-sump lubrication with 2 rotor pumps

Fuel and Emission Standards

Fuel System

Injection. Keihin

Fuel Capacity

19.50 litres / 5.15 gallons

Suspension

Front Suspension

WPSuspension Up Side Down 4860 MXMA PA

Front Suspension Travel

245 mm / 9.6 inches

Front Wheel Travel

275 mm / 10.8 inches

Rear Suspension

WPSuspension PDS 5018 DCC PA

Rear Wheel Travel

272 mm / 10.7 inches

Tires and Rims

Front Tire

21/7-10

Front Tire Dimensions

90/90-21

Rear Tire

20/11-9

Rear Tire Dimensions

150/70-R18

Brakes

Front Brakes

Double disc. Floating brake calipers and brake discs

Front Brake Diameter

300 mm / 11.8 inches

Rear Brakes

Single disc. Floating brake caliper and brake disc

Rear Brake Diameter

240 mm / 9.4 inches

Notes, Comments and Warranty Information

Colour Options

Black/orange/white

KTM 990 Adventure R 2012 specs
