KTM 690 Supermoto 2009 specifications pictures and more for the 2009 KTM 690 Supermoto in South Africa brought to you by Motomedia

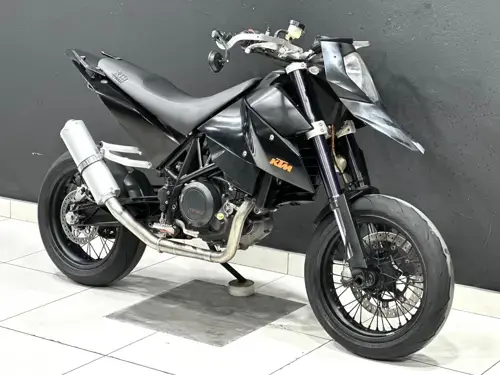

KTM 690 Supermoto 2009 specs

Latest motor bike specifications and pictures for the 2009 KTM 690 Supermoto.



KTM 690 Supermoto 2009 motorcycle info

Main Detail

Make
KTM
Model
690 Supermoto
Year
2009
Category
Super motard

Performance and Speed

Power to Weight Ratio
0.4092 HP/kg
Torque
65.00

Dimensions and Weight

Dry Weight
154.0 kg / 339.5 pounds
Ground Clearance
245 mm / 9.6 inches
Trail
112 mm / 4.4 inches
Wheelbase
1,472 mm / 58.0 inches

Engine and Exhaust

Bore / Stroke
102.0 x 80.0 mm / 4.0 x 3.1 inches
Engine Capacity
653.70 cc / 39.89 cubic inches
Compression
11.7:1
Engine Type
Single cylinder
Ignition
Kokusan
Starter
Electric
2 / 4 Stroke
4
Valves / Cylinder
4
Exhaust system
INOX double silencer with regulated catalytic converters

Transmission (Gearbox) and Final Drive

Transmission Type
Chain
Gearbox
6-speed
Clutch
APTC multi-disc wet clutch, hydraulically operated
Lubrication System
Pressure lubrication with 2 oil pumps

Fuel and Emission Standards

Fuel System
Carburettor. Keihin MX FCR 41
Fuel Control
OHC
Fuel Capacity
13.20 litres / 3.49 gallons

Suspension

Front Suspension
WP USD, 48 mm
Front Suspension Travel
280 mm / 11.0 inches
Front Wheel Travel
280 mm / 11.0 inches
Rear Suspension
WP mono shock with Pro Lever Linkage
Rear Wheel Travel
310 mm / 12.2 inches

Tires and Rims

Front Tire Dimensions
120/70-17
Rear Tire Dimensions
160/60-17

Brakes

Front Brakes
Single disc. Brembo four piston, radially bolted caliper
Front Brake Diameter
320 mm / 12.6 inches
Rear Brakes
Single disc. Brembo single piston, floating caliper
Rear Brake Diameter
240 mm / 9.4 inches

Notes, Comments and Warranty Information

Colour Options
Orange
