KTM 690 Duke R 2016 specifications pictures and more for the 2016 KTM 690 Duke R in South Africa brought to you by Motomedia

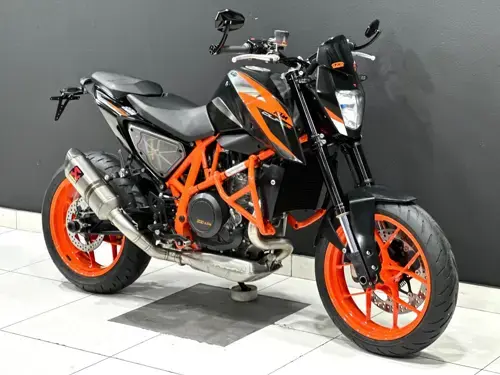

KTM 690 Duke R 2016 specs

Latest motor bike specifications and pictures for the 2016 KTM 690 Duke R.



KTM 690 Duke R 2016 motorcycle info

Main Detail

Make
KTM
Model
690 Duke R
Year
2016
Category
Naked bike

Performance and Speed

Power to Weight Ratio
0.5017 HP/kg

Dimensions and Weight

Dry Weight
149.5 kg / 329.6 pounds
Ground Clearance
192 mm / 7.6 inches
Wheelbase
1,466 mm / 57.7 inches

Engine and Exhaust

Bore / Stroke
105.0 x 80.0 mm / 4.1 x 3.1 inches
Engine Capacity
690.00 cc / 42.10 cubic inches
Engine Type
Single cylinder, four-stroke
Ignition
Keihin EMS with RBW, twin ignition
Starter
Electric

Transmission (Gearbox) and Final Drive

Transmission Type
Chain
Gearbox
6-speed
Clutch
APTC slipper clutch, hydraulically actuated
Lubrication System
Semi-dry-sump lubrication with 2 rotor pumps

Fuel and Emission Standards

Fuel System
Injection

Suspension

Front Suspension
WP upside-down ? 43 mm
Front Wheel Travel
150 mm / 5.9 inches
Rear Suspension
WP shock absorber with Pro-Lever linkage
Rear Wheel Travel
150 mm / 5.9 inches

Brakes

Front Brakes
Single disc. Bremo. Floating disc. Four-piston calipers. Radially mounted. Bosch 9M+ ABS.
Front Brake Diameter
320 mm / 12.6 inches
Rear Brakes
Single disc. Bremo. Floating disc. Single-piston caliper. Bosch 9M+ ABS.
Rear Brake Diameter
240 mm / 9.4 inches

Notes, Comments and Warranty Information

Comments
Ride-by-wire.
Colour Options
Black/grey/orange
