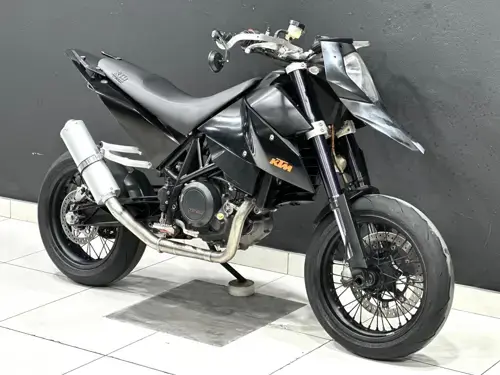

KTM 690 Duke 2009 specifications pictures and more for the 2009 KTM 690 Duke in South Africa brought to you by Motomedia

KTM 690 Duke 2009 motorcycle info

Main Detail

Make

KTM

Model

690 Duke

Year

2009

Performance and Speed

Power to Weight Ratio

0.4334 HP/kg

Torque

67.00 Nm (6.8 kgf-m or 49.4 ft.lbs) @ 5500

Dimensions and Weight

Dry Weight

148.5 kg / 327.4 pounds

Ground Clearance

155 mm / 6.1 inches

Wheelbase

1,472 mm / 58.0 inches

Engine and Exhaust

Bore / Stroke

102.0 x 80.0 mm / 4.0 x 3.1 inches

Engine Capacity

654.00 cc / 39.91 cubic inches

Compression

11.8:1

Engine Type

Single cylinder, four-stroke

Starter

Electric

Valves / Cylinder

Exhaust system

Stainless steel underfloor silencer with integrated catalytic converter

Transmission (Gearbox) and Final Drive

Gearbox

6-speed

Clutch

APTC Wet multi-disc clutch, operated hydraulically

Lubrication System

Pressure lubrication with 2 Eaton pumps

Fuel and Emission Standards

Fuel System

Injection. Keihin EFI with EPT (Electr. Power Throttle)

Fuel Control

OHC

Fuel Capacity

13.50 litres / 3.57 gallons

Suspension

Front Suspension

WP USD

Front Suspension Travel

140 mm / 5.5 inches

Front Wheel Travel

140 mm / 5.5 inches

Rear Suspension

WP mono shock with Pro-Lever linkage

Rear Wheel Travel

140 mm / 5.5 inches

Tires and Rims

Front Tire Dimensions

120/70-17

Rear Tire Dimensions

160/60-17

Brakes

Front Brakes

Single disc

Front Brake Diameter

320 mm / 12.6 inches

Rear Brakes

Single disc

Rear Brake Diameter

220 mm / 8.7 inches

Notes, Comments and Warranty Information

Colour Options

Orange, white, black
