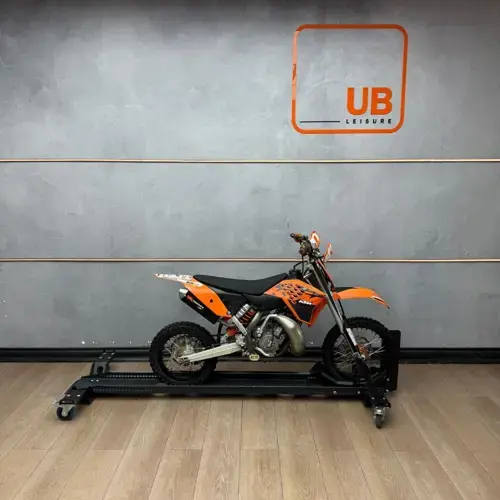

KTM 65 SX 2013 specifications pictures and more for the 2013 KTM 65 SX in South Africa brought to you by Motomedia

KTM 65 SX 2013 motorcycle info

Main Detail

Make

KTM

Model

65 SX

Year

2013

Dimensions and Weight

Dry Weight

55.5 kg / 122.4 pounds

Ground Clearance

280 mm / 11.0 inches

Wheelbase

1,137 mm / 44.8 inches

Engine and Exhaust

Bore / Stroke

45.0 x 40.8 mm / 1.8 x 1.6 inches

Engine Capacity

64.85 cc / 3.96 cubic inches

Engine Detail

Reed intake.

Engine Type

Single cylinder, two-stroke

Ignition

Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment

Starter

Kick

Transmission (Gearbox) and Final Drive

Transmission Type

Chain

Gearbox

6-speed

Clutch

Wet multi-disc clutch / hydraulically operated

Drive line

14:48. Primary drive: 23:75 straight cut spur gear.

Lubrication System

Mixture oil lubrication

Fuel and Emission Standards

Fuel Capacity

3.50 litres / 0.92 gallons

Suspension

Front Suspension

WP ?Suspension USD ?35

Front Suspension Travel

205 mm / 8.1 inches

Front Wheel Travel

275 mm / 10.8 inches

Rear Suspension

WP ?Suspension ?3614 BAVP

Rear Wheel Travel

272 mm / 10.7 inches

Brakes

Front Brakes

Single disc. Four-piston calipers.

Front Brake Diameter

198 mm / 7.8 inches

Rear Brakes

Single disc. Two-piston calipers.

Rear Brake Diameter

160 mm / 6.3 inches

Notes, Comments and Warranty Information

Colour Options

Orange/black

KTM 65 SX 2013 specs
