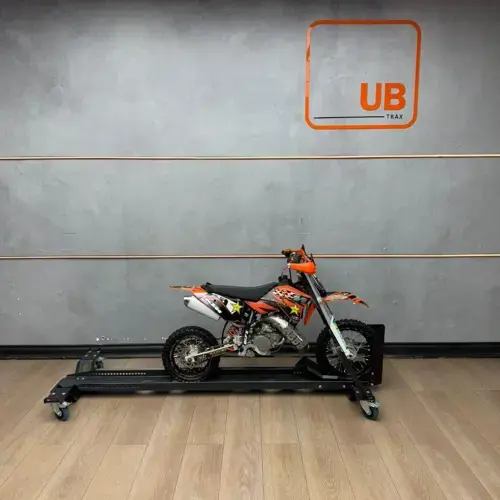

KTM 50 SX 2013 specifications pictures and more for the 2013 KTM 50 SX in South Africa brought to you by Motomedia

KTM 50 SX 2013 motorcycle info

Main Detail

Make

KTM

Model

50 SX

Year

2013

Performance and Speed

Power to Weight Ratio

0.0815 HP/kg

Torque

9.20 Nm (0.9 kgf-m or 6.8 ft.lbs) @ 7000 Revolutions">RPM

Dimensions and Weight

Dry Weight

41.5 kg / 91.5 pounds

Ground Clearance

252 mm / 9.9 inches

Overall Height

1,140 mm / 44.9 inches

Overall Length

2,090 mm / 82.3 inches

Overall Width

830 mm / 32.7 inches

Wheelbase

1,032 mm / 40.6 inches

Engine and Exhaust

Bore / Stroke

39.5 x 40.0 mm / 1.6 x 1.6 inches

Engine Capacity

49.00 cc / 2.99 cubic inches

Compression

10.6:1

Engine Detail

Reed intake.

Engine Type

Single cylinder, two-stroke

Ignition

SELETTRA 2p D36

Starter

Kick

Valves / Cylinder

Transmission (Gearbox) and Final Drive

Transmission Type

Chain

Gearbox

5-speed

Clutch

3-lining automatic clutch on the main shaft / centrifugal force

Drive line

11:40. Primary drive: 33:61 straight cut spur gear.

Lubrication System

Mixture oil lubrication

Fuel and Emission Standards

Fuel System

Carburettor

Fuel Control

Single Overhead Cams (SOHC)

Fuel Capacity

2.30 litres / 0.61 gallons

Suspension

Front Suspension

WP ?Suspension USD ?35

Front Suspension Travel

205 mm / 8.1 inches

Front Wheel Travel

205 mm / 8.1 inches

Rear Suspension

WP ?Suspension ?3614 BAEM

Rear Wheel Travel

185 mm / 7.3 inches

Tires and Rims

Front Tire

100/80-17

Rear Tire

110/80-17

Brakes

Front Brakes

Single disc. Four-piston calipers.

Front Brake Diameter

160 mm / 6.3 inches

Rear Brakes

Single disc. Two-piston calipers.

Rear Brake Diameter

140 mm / 5.5 inches

Notes, Comments and Warranty Information

Colour Options

Orange/black

KTM 50 SX 2013 specs
