KTM 450 SX-F 2016 specifications pictures and more for the 2016 KTM 450 SX-F in South Africa brought to you by Motomedia

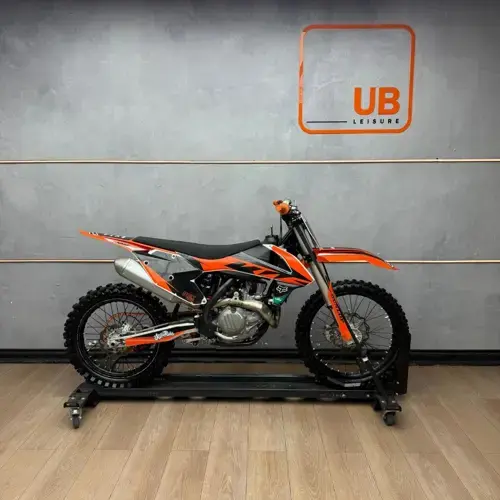

KTM 450 SX-F 2016 specs

Latest motor bike specifications and pictures for the 2016 KTM 450 SX-F.



KTM 450 SX-F 2016 motorcycle info

Main Detail

Make
KTM
Model
450 SX-F
Year
2016
Category
Cross / motocross

Dimensions and Weight

Dry Weight
100.4 kg / 221.3 pounds
Ground Clearance
370 mm / 14.6 inches
Wheelbase
1,485 mm / 58.5 inches

Engine and Exhaust

Bore / Stroke
95.0 x 63.4 mm / 3.7 x 2.5 inches
Engine Capacity
449.30 cc / 27.42 cubic inches
Engine Type
Single cylinder, four-stroke
Ignition
Contactless controlled fully electronic ignition with digital ignition adjustment
Starter
Electric

Transmission (Gearbox) and Final Drive

Transmission Type
Chain
Gearbox
4-speed
Clutch
Wet, DDS multi-disc clutch, Brembo hydraulics
Drive line
5/8 x 1/4
Lubrication System
Pressure circulation lubrication with two Eaton pumps

Fuel and Emission Standards

Fuel Control
Single Overhead Cams (SOHC)
Fuel Capacity
7.00 litres / 1.85 gallons

Suspension

Front Suspension
WP-USD, AER 48, ? 48 mm
Front Wheel Travel
300 mm / 11.8 inches
Rear Suspension
WP shock absorber with linkage
Rear Wheel Travel
300 mm / 11.8 inches

Brakes

Front Brakes
Single disc. Brake calipers on floating bearings
Front Brake Diameter
260 mm / 10.2 inches
Rear Brakes
Single disc. Brake calipers on floating bearings
Rear Brake Diameter
220 mm / 8.7 inches

Notes, Comments and Warranty Information

Colour Options
Orange/black
