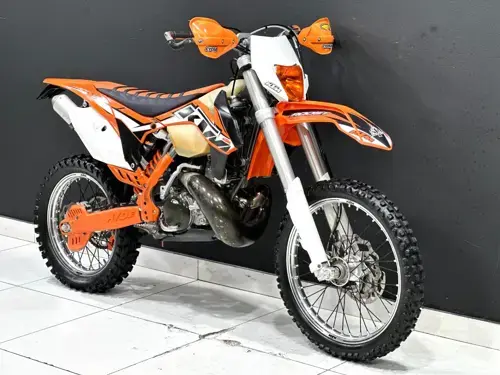

KTM 300 XC-W 2014 specifications pictures and more for the 2014 KTM 300 XC-W in South Africa brought to you by Motomedia

KTM 300 XC-W 2014 motorcycle info

Main Detail

Make

KTM

Model

300 XC-W

Year

2014

Performance and Speed

Top Speed

45.1 km/h / 28.0 mph

Torque

1.00 Nm (0.1 kgf-m or 0.7 ft.lbs)

Dimensions and Weight

Dry Weight

102.1 kg / 225.1 pounds

Ground Clearance

355 mm / 14.0 inches

Overall Height

1,120 mm / 44.1 inches

Overall Length

2,120 mm / 83.5 inches

Overall Width

840 mm / 33.1 inches

Kerb Weight

112.0 kg / 246.9 pounds

Wheelbase

1,482 mm / 58.3 inches

Engine and Exhaust

Bore / Stroke

72.0 x 72.0 mm / 2.8 x 2.8 inches

Engine Capacity

293.20 cc / 17.89 cubic inches

Engine Detail

Reed intake.

Engine Type

Single cylinder, two-stroke

Ignition

Contactless controlled fully electronic ignition with digital ignition adjustment, type Kokusan

Starter

Electric & kick

Exhaust system

Stainless steel exhaust

Transmission (Gearbox) and Final Drive

Transmission Type

Chain

Gearbox

6-speed

Clutch

Multidisc clutch DDS in oil bath/hydraulically activated

Drive line

5/8 x 1/4

Lubrication System

Forced oil lubrication with 2 Eaton pumps

Fuel and Emission Standards

Fuel System

Carburettor

Fuel Capacity

10.00 litres / 2.64 gallons

Emission Details

Euro 2

Suspension

Front Suspension

WP ?Suspension Up Side Down 4860 MXMA PA

Front Suspension Travel

300 mm / 11.8 inches

Front Wheel Travel

300 mm / 11.8 inches

Rear Suspension

WP ?Suspension PDS 5018 DCC

Rear Wheel Travel

317 mm / 12.5 inches

Tires and Rims

Front Tire

110/70-17

Rear Tire

130/70-17

Brakes

Front Brakes

Single disc. Brake calipers on floating bearings

Front Brake Diameter

260 mm / 10.2 inches

Rear Brakes

Single disc. Brake calipers on floating bearings

Rear Brake Diameter

220 mm / 8.7 inches

Instrumentation and Lighting

Instruments

Digital cockpit

Notes, Comments and Warranty Information

Comments

German brand.

Colour Options

Orange/gray
