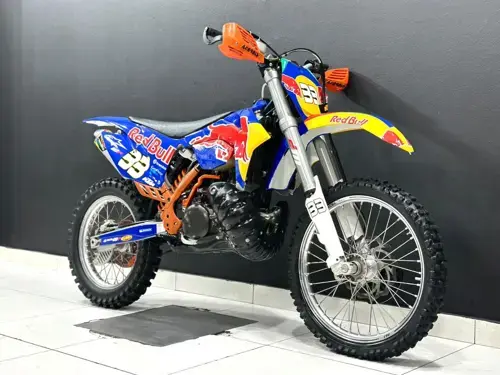

KTM 300 XC-W 2012 specifications pictures and more for the 2012 KTM 300 XC-W in South Africa brought to you by Motomedia

KTM 300 XC-W 2012 motorcycle info

Main Detail

Make

KTM

Model

300 XC-W

Year

2012

Dimensions and Weight

Dry Weight

102.0 kg / 224.9 pounds

Ground Clearance

355 mm / 14.0 inches

Overall Height

1,146 mm / 45.1 inches

Overall Length

2,065 mm / 81.3 inches

Overall Width

1,204 mm / 47.4 inches

Kerb Weight

292.1 kg / 643.9 pounds

Wheelbase

1,482 mm / 58.3 inches

Engine and Exhaust

Bore / Stroke

72.0 x 72.0 mm / 2.8 x 2.8 inches

Engine Capacity

293.00 cc / 17.88 cubic inches

Compression

8.3:1

Engine Detail

Reed intake and exhaust control. New V-Force reed valve block.

Engine Type

Single cylinder, two-stroke

Starter

Electric & kick

Transmission (Gearbox) and Final Drive

Transmission Type

Chain

Gearbox

6-speed

Clutch

Multidisc clutch in oil bath/hydraulically activated

Drive line

Primary transmission 26:72. Secondary ratio 13:50. 5/8 x 1/4

Lubrication System

Mixture oil 1:60

Fuel and Emission Standards

Fuel System

Carburettor. Keihin CVK34

Fuel Control

Single Overhead Cams (SOHC)

Fuel Capacity

9.50 litres / 2.51 gallons

Suspension

Front Suspension

WPSuspension Up Side Down 4860 MXMA PA

Front Suspension Travel

300 mm / 11.8 inches

Front Wheel Travel

300 mm / 11.8 inches

Rear Suspension

WPSuspension PDS 5018 DCC

Rear Wheel Travel

335 mm / 13.2 inches

Tires and Rims

Front Tire

25/8-12

Front Tire Dimensions

90/90-21

Rear Tire

25/10-12

Rear Tire Dimensions

120/90-18

Brakes

Front Brakes

Single disc. Brake calipers on floating bearings

Front Brake Diameter

260 mm / 10.2 inches

Rear Brakes

Single disc. Brake calipers on floating bearings

Rear Brake Diameter

220 mm / 8.7 inches

Instrumentation and Lighting

Lighting

30W x 2 halogen

Notes, Comments and Warranty Information

Modifications from Previous Model

Completely new frame design with PDS that reduces longitudinal stiffness.

Factory Warranty

12 Months

Colour Options

Orange/white/black

KTM 300 XC-W 2012 specs
