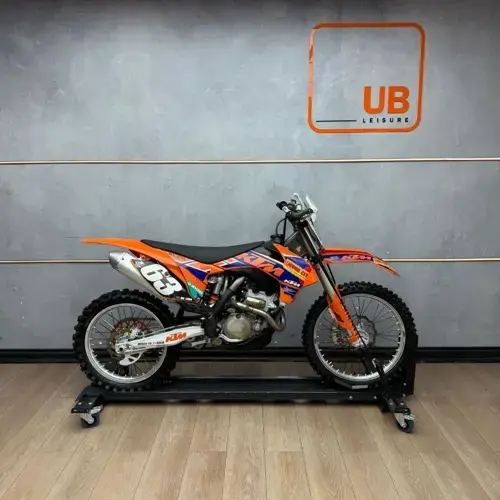

KTM 250 SX-F 2013 specifications pictures and more for the 2013 KTM 250 SX-F in South Africa brought to you by Motomedia

KTM 250 SX-F 2013 specs

Latest motor bike specifications and pictures for the 2013 KTM 250 SX-F.



KTM 250 SX-F 2013 motorcycle info

Main Detail

Make
KTM
Model
250 SX-F
Year
2013
Category
Cross / motocross

Performance and Speed

Power to Weight Ratio
0.0815 HP/kg
Torque
9.20 Nm (0.9 kgf-m or 6.8 ft.lbs) @ 7000 Revolutions">RPM

Dimensions and Weight

Dry Weight
102.8 kg / 226.6 pounds
Ground Clearance
375 mm / 14.8 inches
Overall Height
1,140 mm / 44.9 inches
Overall Length
2,090 mm / 82.3 inches
Overall Width
830 mm / 32.7 inches
Wheelbase
1,495 mm / 58.9 inches

Engine and Exhaust

Bore / Stroke
78.0 x 52.3 mm / 3.1 x 2.1 inches
Engine Capacity
249.91 cc / 15.25 cubic inches
Compression
10.6:1
Engine Type
Single cylinder, four-stroke
Ignition
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
Starter
Electric
Valves / Cylinder
2

Transmission (Gearbox) and Final Drive

Transmission Type
Chain
Gearbox
5-speed
Clutch
Wet multi-disc clutch / hydraulically operated
Drive line
13:48. Primary drive: 22:68.
Lubrication System
Forced oil lubrication with 2 Eaton pumps

Fuel and Emission Standards

Fuel System
Carburettor
Fuel Control
Single Overhead Cams (SOHC)
Fuel Capacity
7.50 litres / 1.98 gallons

Suspension

Front Suspension
WP ?Suspension Up Side Down 4860 MXMA CC
Front Suspension Travel
205 mm / 8.1 inches
Front Wheel Travel
205 mm / 8.1 inches
Rear Suspension
WP ?Suspension 5018 BAVP DCC
Rear Wheel Travel
185 mm / 7.3 inches

Tires and Rims

Front Tire
100/80-17
Rear Tire
110/80-17

Brakes

Front Brakes
Single disc. Four-piston calipers.
Front Brake Diameter
220 mm / 8.7 inches
Rear Brakes
Single disc. Two-piston calipers.
Rear Brake Diameter
210 mm / 8.3 inches

Notes, Comments and Warranty Information

Colour Options
Orange/black
