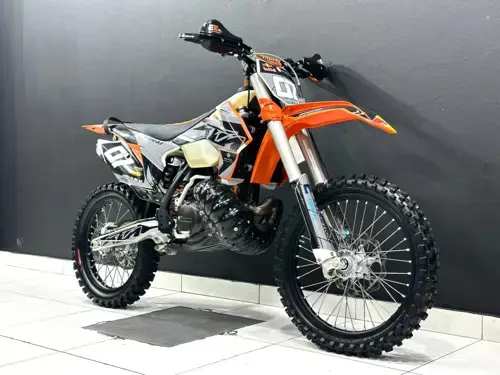

KTM 250 SX 2016 specifications pictures and more for the 2016 KTM 250 SX in South Africa brought to you by Motomedia

KTM 250 SX 2016 specs

Latest motor bike specifications and pictures for the 2016 KTM 250 SX.



KTM 250 SX 2016 motorcycle info

Main Detail

Make
KTM
Model
250 SX
Year
2016
Category
Cross / motocross

Dimensions and Weight

Dry Weight
95.9 kg / 211.4 pounds
Ground Clearance
385 mm / 15.2 inches
Wheelbase
1,495 mm / 58.9 inches

Engine and Exhaust

Bore / Stroke
66.4 x 72.0 mm / 2.6 x 2.8 inches
Engine Capacity
249.00 cc / 15.19 cubic inches
Engine Detail
Reed intake.
Engine Type
Single cylinder, two-stroke
Ignition
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment, type Kokusan
Starter
Kick

Transmission (Gearbox) and Final Drive

Transmission Type
Chain
Gearbox
5-speed
Clutch
Wet, DDS multi-disc clutch, Brembo hydraulics
Drive line
13:48. Primary drive: 26:72. 520 X-ring chain.

Fuel and Emission Standards

Fuel System
Carburettor. Keihin PWK 38S AG
Fuel Capacity
7.00 litres / 1.85 gallons

Suspension

Front Suspension
WP USD closed cartridge ? 48 mm
Front Wheel Travel
300 mm / 11.8 inches
Rear Suspension
WP shock absorber with linkage
Rear Wheel Travel
300 mm / 11.8 inches

Brakes

Front Brakes
Single disc. Four-piston calipers.
Front Brake Diameter
260 mm / 10.2 inches
Rear Brakes
Single disc. Two-piston calipers.
Rear Brake Diameter
220 mm / 8.7 inches

Notes, Comments and Warranty Information

Colour Options
Orange/white/black
