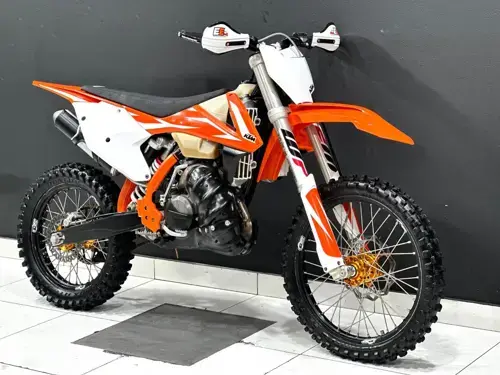

KTM 125 XC-W 2018 specifications pictures and more for the 2018 KTM 125 XC-W in South Africa brought to you by Motomedia

KTM 125 XC-W 2018 specs

Latest motor bike specifications and pictures for the 2018 KTM 125 XC-W.



KTM 125 XC-W 2018 motorcycle info

Main Detail

Make
KTM
Model
125 XC-W
Year
2018
Category
Enduro / Off-Road

Dimensions and Weight

Dry Weight
91.0 kg / 200.6 pounds
Ground Clearance
370 mm / 14.6 inches
Wheelbase
1,471 mm / 57.9 inches

Engine and Exhaust

Bore / Stroke
54.0 x 54.5 mm / 2.1 x 2.1 inches
Engine Capacity
124.80 cc / 7.62 cubic inches
Engine Detail
Reed intake.
Engine Type
Single cylinder, two-stroke
Starter
Kick

Transmission (Gearbox) and Final Drive

Transmission Type
Chain
Gearbox
6-speed
Clutch
Multi-plate clutch, Brembo hydraulics
Drive line
13:50. Primary drive: 23:73.

Fuel and Emission Standards

Fuel System
Carburettor. Mikuni TMX
Fuel Capacity
9.50 litres / 2.51 gallons

Suspension

Front Suspension
WP Xplor PDS shock absorber
Front Wheel Travel
300 mm / 11.8 inches
Rear Suspension
WP shock absorber with linkage
Rear Wheel Travel
310 mm / 12.2 inches

Brakes

Front Brakes
Single disc. Brake calipers on floating bearings
Front Brake Diameter
260 mm / 10.2 inches
Rear Brakes
Single disc. Brake calipers on floating bearings
Rear Brake Diameter
220 mm / 8.7 inches

Notes, Comments and Warranty Information

Colour Options
Orange/white/black
