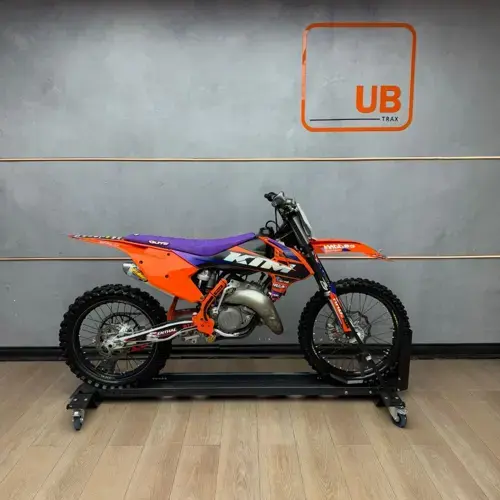

KTM 125 SX 2018 specifications pictures and more for the 2018 KTM 125 SX in South Africa brought to you by Motomedia

KTM 125 SX 2018 specs

Latest motor bike specifications and pictures for the 2018 KTM 125 SX.



KTM 125 SX 2018 motorcycle info

Main Detail

Make
KTM
Model
125 SX
Year
2018
Category
Cross / motocross

Dimensions and Weight

Dry Weight
87.2 kg / 192.2 pounds
Ground Clearance
375 mm / 14.8 inches
Wheelbase
1,485 mm / 58.5 inches

Engine and Exhaust

Bore / Stroke
54.0 x 54.5 mm / 2.1 x 2.1 inches
Engine Capacity
124.80 cc / 7.62 cubic inches
Engine Detail
Reed intake.
Engine Type
Single cylinder, two-stroke
Ignition
Kokusan EMS
Starter
Kick

Transmission (Gearbox) and Final Drive

Transmission Type
Chain
Gearbox
6-speed
Clutch
Multi-plate clutch, Brembo hydraulics
Drive line
13:50. Primary drive: 23:73.

Fuel and Emission Standards

Fuel System
Carburettor. Mikuni TMX
Fuel Capacity
7.00 litres / 1.85 gallons

Suspension

Front Suspension
WP-USD, AER 48, ? 48 mm
Front Wheel Travel
300 mm / 11.8 inches
Rear Suspension
WP shock absorber with linkage
Rear Wheel Travel
300 mm / 11.8 inches

Tires and Rims

Rims
CNC machined hubs. Excel rims. Wire spoked.

Brakes

Front Brakes
Single disc. Brake calipers on floating bearings
Front Brake Diameter
260 mm / 10.2 inches
Rear Brakes
Single disc. Brake calipers on floating bearings
Rear Brake Diameter
220 mm / 8.7 inches

Notes, Comments and Warranty Information

Colour Options
Orange/white/black
