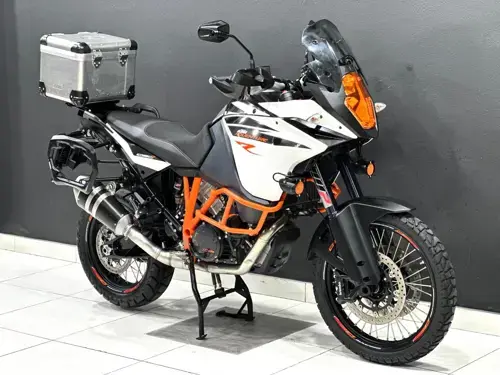

KTM 1090 Adventure R 2017 specifications pictures and more for the 2017 KTM 1090 Adventure R in South Africa brought to you by Motomedia

KTM 1090 Adventure R 2017 motorcycle info

Main Detail

Make

KTM

Model

1090 Adventure R

Year

2017

Performance and Speed

Power to Weight Ratio

0.6039 HP/kg

Dimensions and Weight

Dry Weight

207.0 kg / 456.4 pounds

Ground Clearance

250 mm / 9.8 inches

Wheelbase

1,580 mm / 62.2 inches

Engine and Exhaust

Bore / Stroke

103.0 x 63.0 mm / 4.1 x 2.5 inches

Engine Capacity

1050.00 cc / 64.07 cubic inches

Engine Detail

75° V arrangement

Engine Type

Twin, four-stroke

Ignition

Keihin EMS with RBW, twin ignition

Starter

Electric

Transmission (Gearbox) and Final Drive

Transmission Type

Chain

Gearbox

6-speed

Clutch

PASC slipper clutch, hydraulically actuated

Drive line

5/8 x 5/16 X Ring. Primary drive: 40:76.

Lubrication System

Forced oil lubrication with 3 rotor pumps

Fuel and Emission Standards

Fuel System

Injection

Fuel Capacity

23.00 litres / 6.08 gallons

Suspension

Front Suspension

WP upside-down ? 43 mm

Front Wheel Travel

220 mm / 8.7 inches

Rear Suspension

WP PSD monoshock

Rear Wheel Travel

220 mm / 8.7 inches

Brakes

Front Brakes

Double disc. ABS. Four-piston calipers. Radially mounted. Brembo

Front Brake Diameter

320 mm / 12.6 inches

Rear Brakes

Single disc. ABS. Two-piston calipers. Brembo.

Rear Brake Diameter

267 mm / 10.5 inches

Notes, Comments and Warranty Information

Comments

Small windscreen. Ride-by-wire system. Traction control with different modes.

Colour Options

Black/black/orange

KTM 1090 Adventure R 2017 specs
