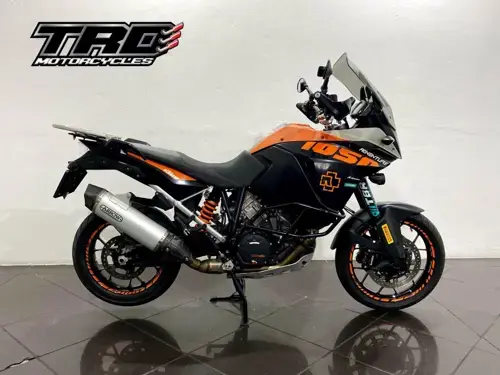

KTM 1050 Adventure 2016 specifications pictures and more for the 2016 KTM 1050 Adventure in South Africa brought to you by Motomedia

KTM 1050 Adventure 2016 motorcycle info

Main Detail

Make

KTM

Model

1050 Adventure

Year

2016

Performance and Speed

Power to Weight Ratio

0.4481 HP/kg

Dimensions and Weight

Dry Weight

212.0 kg / 467.4 pounds

Ground Clearance

220 mm / 8.7 inches

Wheelbase

1,560 mm / 61.4 inches

Engine and Exhaust

Bore / Stroke

103.0 x 63.0 mm / 4.1 x 2.5 inches

Engine Capacity

1050.00 cc / 64.07 cubic inches

Engine Detail

75° V arrangement

Engine Type

Twin, four-stroke

Ignition

Keihin EMS with RBW, twin ignition

Starter

Electric

Transmission (Gearbox) and Final Drive

Transmission Type

Chain

Gearbox

6-speed

Clutch

PASC slipper clutch, hydraulically actuated

Drive line

5/8 x 5/16 X Ring. Primary drive: 40:76.

Lubrication System

Forced oil lubrication with 3 rotor pumps

Fuel and Emission Standards

Fuel System

Injection

Fuel Capacity

23.00 litres / 6.08 gallons

Suspension

Front Suspension

WP upside-down ? 43 mm

Front Wheel Travel

185 mm / 7.3 inches

Rear Suspension

WP monoshock

Rear Wheel Travel

190 mm / 7.5 inches

Brakes

Front Brakes

Double disc. ABS. Four-piston calipers. Radially mounted. Bremo

Front Brake Diameter

320 mm / 12.6 inches

Rear Brakes

Single disc. ABS. Two-piston calipers. Bremo.

Rear Brake Diameter

267 mm / 10.5 inches

Notes, Comments and Warranty Information

Comments

Small windscreen. Ride-by-wire system. Traction control with different modes.

Colour Options

Orange/black
