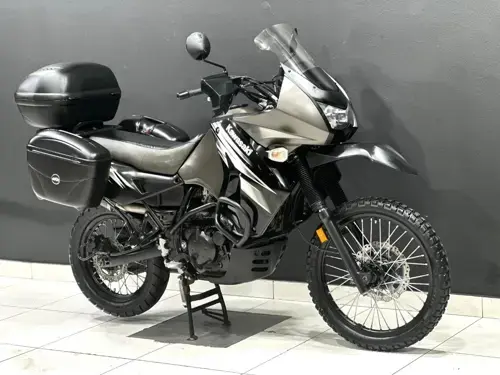

Kawasaki KLR650 2012 specifications pictures and more for the 2012 Kawasaki KLR650 in South Africa brought to you by Motomedia

Kawasaki KLR650 2012 motorcycle info

Main Detail

Make

Kawasaki

Model

KLR650

Year

2012

Dimensions and Weight

Ground Clearance

211 mm / 8.3 inches

Overall Height

1,349 mm / 53.1 inches

Overall Length

2,296 mm / 90.4 inches

Overall Width

960 mm / 37.8 inches

Trail

112 mm / 4.4 inches

Kerb Weight

196.0 kg / 432.0 pounds

Wheelbase

1,481 mm / 58.3 inches

Engine and Exhaust

Bore / Stroke

100.0 x 83.0 mm / 3.9 x 3.3 inches

Engine Capacity

651.00 cc / 39.72 cubic inches

Compression

9.8:1

Engine Type

Single cylinder, four-stroke

Ignition

Electric CDI

Starter

Electric

Valves / Cylinder

Transmission (Gearbox) and Final Drive

Transmission Type

Chain

Gearbox

5-speed

Fuel and Emission Standards

Fuel System

Carburettor. Keihin CVK40

Fuel Control

DOHC

Fuel Capacity

23.09 litres / 6.10 gallons

Suspension

Front Suspension

41mm telescopic fork / 7.9 in.

Rear Suspension

Uni-Trak single-shock system with 5-way preload and stepless rebound damping / 7.3 in.

Tires and Rims

Front Tire

18/7-8

Front Tire Dimensions

90/90-21

Rear Tire

18/9-8

Rear Tire Dimensions

130/80-17

Brakes

Front Brakes

Single disc

Front Brake Diameter

280 mm / 11.0 inches

Rear Brakes

Single disc

Rear Brake Diameter

240 mm / 9.4 inches

Instrumentation and Lighting

Instruments

Neutral indicator, reverse indicator

Lighting

Dual removable 30w headlights / LED taillight / brake light

Notes, Comments and Warranty Information

Factory Warranty

12 Months

Colour Options

Red/gray, black/gray, blue/white

Kawasaki KLR650 2012 specs
