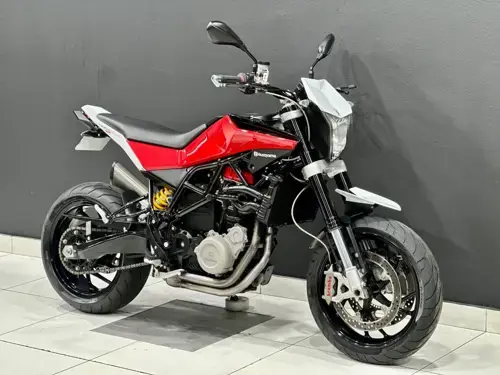

Husqvarna Nuda 900R 2014 specifications pictures and more for the 2014 Husqvarna Nuda 900R in South Africa brought to you by Motomedia

Husqvarna Nuda 900R 2014 motorcycle info

Main Detail

Make

Husqvarna

Model

Nuda 900R

Year

2014

Performance and Speed

Power to Weight Ratio

0.5934 HP/kg

Torque

100.00 Nm (10.2 kgf-m or 73.8 ft.lbs) @ 7000

Dimensions and Weight

Dry Weight

174.0 kg / 383.6 pounds

Ground Clearance

355 mm / 14.0 inches

Overall Height

1,220 mm / 48.0 inches

Overall Length

2,190 mm / 86.2 inches

Trail

101 mm / 4.0 inches

Kerb Weight

195.0 kg / 429.9 pounds

Wheelbase

1,495 mm / 58.9 inches

Engine and Exhaust

Bore / Stroke

84.0 x 81.0 mm / 3.3 x 3.2 inches

Engine Capacity

898.00 cc / 54.80 cubic inches

Compression

13.0:1

Engine Detail

Modofied BMW F 800 R engine

Engine Type

Twin, four-stroke

Ignition

Digital engine management, two engine mappings (switchable by customer)

Starter

Electric

Transmission (Gearbox) and Final Drive

Transmission Type

Chain

Gearbox

6-speed

Clutch

Wet, multi plate, cable operated

Drive line

Endless O-ring chain with shock damping in the rear hub

Lubrication System

Dry sump

Fuel and Emission Standards

Fuel System

Injection. Electronic intake pipe injection / digital engine management, two engine mappings (switchable by customer)

Fuel Capacity

13.00 litres / 3.43 gallons

Reserve Fuel Capacity

3.00 litres / 0.79 gallons

Emission Details

Closed-loop 3-way catalytic converter, emission standard EU3 Performance

Suspension

Front Suspension

48mm USD Sachs

Front Wheel Travel

300 mm / 11.8 inches

Rear Suspension

Monoshock, adjustable for preload and rebound damping

Rear Wheel Travel

335 mm / 13.2 inches

Tires and Rims

Front Tire

90/90-21

Front Tire Dimensions

120/70-17

Rear Tire

140/80-18

Rear Tire Dimensions

180/55-17

Brakes

Front Brakes

Double disc. ABS. Radially mounted.

Front Brake Diameter

320 mm / 12.6 inches

Rear Brakes

Single disc. ABS. Floating disc.

Rear Brake Diameter

265 mm / 10.4 inches

Notes, Comments and Warranty Information

Comments

Swedish made bike.

Factory Warranty

2 Years, unlimited milage

Colour Options

Black/red
