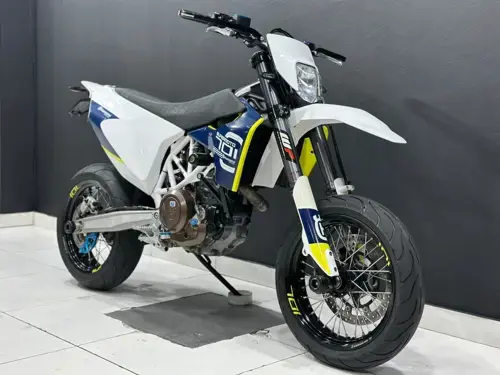

Husqvarna 701 Supermoto 2016 specifications pictures and more for the 2016 Husqvarna 701 Supermoto in South Africa brought to you by Motomedia

Husqvarna 701 Supermoto 2016 motorcycle info

Main Detail

Make

Husqvarna

Model

701 Supermoto

Year

2016

Performance and Speed

Power to Weight Ratio

0.4621 HP/kg

Torque

67.00 Nm (6.8 kgf-m or 49.4 ft.lbs) @ 6500 Revolutions">RPM

Dimensions and Weight

Dry Weight

145.0 kg / 319.7 pounds

Ground Clearance

270 mm / 10.6 inches

Overall Length

2,280 mm / 89.8 inches

Trail

101 mm / 4.0 inches

Wheelbase

1,504 mm / 59.2 inches

Engine and Exhaust

Bore / Stroke

102.0 x 84.5 mm / 4.0 x 3.3 inches

Engine Capacity

690.00 cc / 42.10 cubic inches

Engine Type

Single cylinder, four-stroke

Ignition

Keihin EMS with RBW, twin ignition

Starter

Electric

Transmission (Gearbox) and Final Drive

Transmission Type

Chain

Gearbox

6-speed

Clutch

APTC(TM) slipper clutch, hydraulically actuated

Fuel and Emission Standards

Fuel Control

Single Overhead Cams (SOHC)

Fuel Capacity

13.00 litres / 3.43 gallons

Suspension

Front Suspension

WP USD ? 48 mm

Front Wheel Travel

215 mm / 8.5 inches

Rear Suspension

WP shock absorber with Pro-Lever linkage

Rear Wheel Travel

250 mm / 9.8 inches

Brakes

Front Brakes

Single disc. Bosch 9M+ two-channel ABS

Front Brake Diameter

300 mm / 11.8 inches

Rear Brakes

Single disc. Bosch 9M+ two-channel ABS.

Rear Brake Diameter

240 mm / 9.4 inches

Notes, Comments and Warranty Information

Colour Options

Blue/yellow/white

Husqvarna 701 Supermoto 2016 specs
