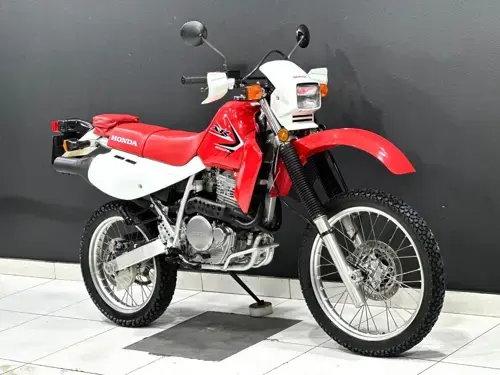

Honda XR650L 2014 specifications pictures and more for the 2014 Honda XR650L in South Africa brought to you by Motomedia

Honda XR650L 2014 motorcycle info

Main Detail

Make

Honda

Model

XR650L

Year

2014

Dimensions and Weight

Ground Clearance

330 mm / 13.0 inches

Trail

102 mm / 4.0 inches

Kerb Weight

156.9 kg / 346.0 pounds

Wheelbase

1,455 mm / 57.3 inches

Engine and Exhaust

Bore / Stroke

100.0 x 82.0 mm / 3.9 x 3.2 inches

Compression

8.3:1

Engine Type

Single cylinder, four-stroke

Ignition

Solid-state CD with electronic advance

Transmission (Gearbox) and Final Drive

Transmission Type

Chain

Gearbox

5-speed

Drive line

#520 O-ring-sealed chain; 15T/45T

Lubrication System

Dry sump

Fuel and Emission Standards

Fuel System

Carburettor. 42.5mm diaphragm-type CV carburetor

Fuel Control

Single Overhead Cams (SOHC)

Fuel Consumption

4.52 litres/100 km (22.1 km/l or 52.04 mpg)

Fuel Capacity

10.60 litres / 2.80 gallons

Emission Details

Meets current CARB and EPA standards. California version differs slightly due to emissions equipment.

Greenhouse Gases

104.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Suspension

Front Suspension

43mm air-adjustable leading-axle Showa cartridge fork with 16-position compression-damping adjustability

Front Wheel Travel

295 mm / 11.6 inches

Rear Suspension

Pro-link Showa® single-shock with spring-preload, 20-position compression- and 20-position rebound-damping adjustability

Rear Wheel Travel

279 mm / 11.0 inches

Tires and Rims

Front Tire

3.00-21

Rear Tire

4.60-18

Brakes

Front Brakes

Double disc. Two-piston calipers.

Rear Brakes

Single disc

Notes, Comments and Warranty Information

Comments

Model ID: XR650L

Factory Warranty

One year. Unlimited milage. Transferable.

Colour Options

Red

Honda XR650L 2014 specs
