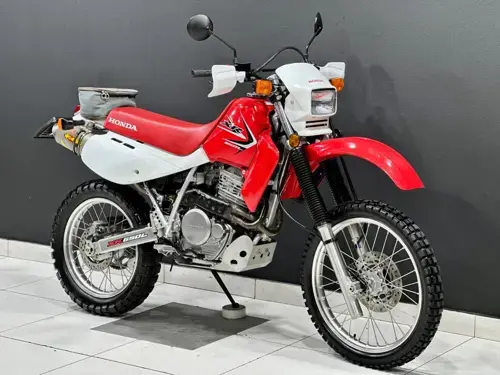

Honda XR650L 2012 specifications pictures and more for the 2012 Honda XR650L in South Africa brought to you by Motomedia

Honda XR650L 2012 motorcycle info

Main Detail

Make

Honda

Model

XR650L

Year

2012

Performance and Speed

Torque

129.00 Nm (13.2 kgf-m or 95.2 ft.lbs) @ 8750 Revolutions">RPM

Dimensions and Weight

Dry Weight

310.0 kg / 683.4 pounds

Ground Clearance

330 mm / 13.0 inches

Overall Height

1,220 mm / 48.0 inches

Overall Length

2,250 mm / 88.6 inches

Overall Width

740 mm / 29.1 inches

Trail

102 mm / 4.0 inches

Kerb Weight

156.9 kg / 346.0 pounds

Wheelbase

1,455 mm / 57.3 inches

Engine and Exhaust

Bore / Stroke

100.0 x 82.0 mm / 3.9 x 3.2 inches

Engine Capacity

644.00 cc / 39.30 cubic inches

Compression

8.3:1

Engine Type

Single cylinder, four-stroke

Ignition

Solid-state CD with electronic advance

Starter

Electric

Valves / Cylinder

Transmission (Gearbox) and Final Drive

Transmission Type

Chain

Gearbox

5-speed

Clutch

Electronic Dual Clutch

Drive line

#520 O-ring-sealed chain; 15T/45T

Lubrication System

Dry sump

Fuel and Emission Standards

Fuel System

Carburettor. 42.5mm diaphragm-type CV carburetor

Fuel Control

SOHC

Fuel Consumption

4.52 litres/100 km (22.1 km/l or 52.04 mpg)

Fuel Capacity

10.60 litres / 2.80 gallons

Emission Details

Meets current CARB and EPA standards. California version differs slightly due to emissions equipment.

Greenhouse Gases

104.9 CO

Suspension

Front Suspension

43mm air-adjustable leading-axle Showa cartridge fork with 16-position compression-damping adjustability

Front Suspension Travel

295 mm / 11.6 inches

Front Wheel Travel

119 mm / 4.7 inches

Rear Suspension

Pro-link Showa single-shock with spring-preload, 20-position compression- and 20-position rebound-damping adjustability

Rear Wheel Travel

130 mm / 5.1 inches

Tires and Rims

Front Tire

120/70-ZR17

Front Tire Dimensions

3.00-21

Rear Tire

190/55-ZR17

Rear Tire Dimensions

4.60-18

Rims

Die cast aluminium

Brakes

Front Brakes

Double disc. Twin-piston caliper

Front Brake Diameter

320 mm / 12.6 inches

Rear Brakes

Single disc

Rear Brake Diameter

276 mm / 10.9 inches

Notes, Comments and Warranty Information

Factory Warranty

One year. Unlimited milage. Transferable.

Colour Options

Red

Honda XR650L 2012 specs
