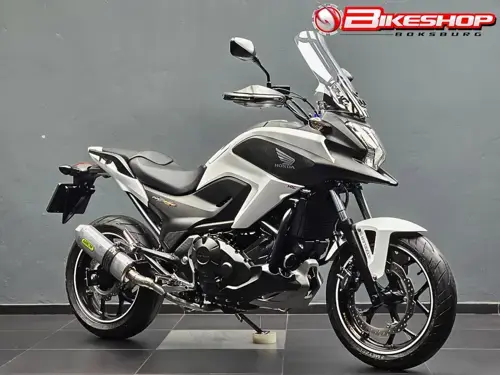

Honda NC750X 2016 motorcycle info

Main Detail

Make

Honda

Model

NC750X

Year

2016

Performance and Speed

Torque

68.00 Nm (6.9 kgf-m or 50.2 ft.lbs) @ 4750 Revolutions">RPM

Dimensions and Weight

Ground Clearance

165 mm / 6.5 inches

Overall Height

1,285 mm / 50.6 inches

Overall Length

2,210 mm / 87.0 inches

Overall Width

840 mm / 33.1 inches

Trail

110 mm / 4.3 inches

Kerb Weight

219.0 kg / 482.8 pounds

Wheelbase

1,540 mm / 60.6 inches

Engine and Exhaust

Bore / Stroke

77.0 x 80.0 mm / 3.0 x 3.1 inches

Engine Capacity

745.00 cc / 45.46 cubic inches

Compression

10.7:1

Engine Type

Twin, four-stroke

Ignition

ABS

Starter

Electric

Transmission (Gearbox) and Final Drive

Transmission Type

Chain

Gearbox

6-speed

Clutch

Wet multiplate hydraulic clutch (DCT:Wet multiplate hydraulic 2-clutch)

Oil Capacity

3.70 litres / 0.24 quarts

Fuel and Emission Standards

Fuel System

Injection

Fuel Capacity

14.10 litres / 3.73 gallons

Suspension

Front Suspension

Showa “dual-bending valve” front fork

Rear Suspension

Monoshock damper, Pro-Link swingarm

Tires and Rims

Front Tire

120/70-ZR17

Rear Tire

160/60-ZR17

Rims

17M/C x MT4.50

Brakes

Front Brakes

Single disc. Hydraulic. Two-piston calipers.

Front Brake Diameter

320 mm / 12.6 inches

Rear Brakes

Single disc. Hydraulic. Single-piston caliper.

Rear Brake Diameter

240 mm / 9.4 inches

Instrumentation and Lighting

Lighting

LED lights front and rear

Notes, Comments and Warranty Information

Colour Options

Black, Red, white, grey
