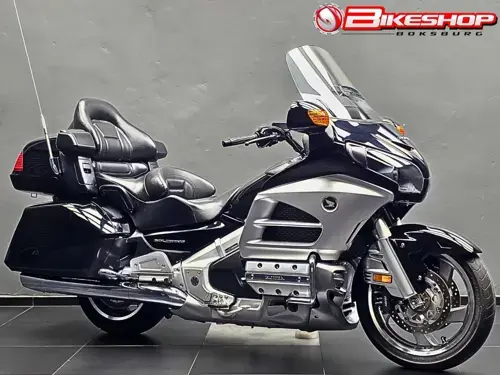

Honda GL1800 Gold Wing 2012 motorcycle info

Main Detail

Make

Honda

Model

GL1800 Gold Wing

Year

2012

Dimensions and Weight

Ground Clearance

254 mm / 10.0 inches

Overall Height

1,207 mm / 47.5 inches

Overall Length

2,113 mm / 83.2 inches

Overall Width

1,189 mm / 46.8 inches

Trail

109 mm / 4.3 inches

Kerb Weight

406.0 kg / 895.0 pounds

Wheelbase

1,689 mm / 66.5 inches

Engine and Exhaust

Bore / Stroke

74.0 x 71.0 mm / 2.9 x 2.8 inches

Engine Capacity

1832.00 cc / 111.79 cubic inches

Compression

9.8:1

Engine Type

Six cylinder boxer, four-stroke

Ignition

Computer-controlled digital with three-dimensional mapping

Starter

Electric

Valves / Cylinder

Transmission (Gearbox) and Final Drive

Transmission Type

Shaft drive (cardan)

Gearbox

5-speed

Clutch

Automatic

Drive line

Direct front and rear driveshafts with TraxLok® and torque-sensitive front differential

Lubrication System

Dry sump

Fuel and Emission Standards

Fuel System

Injection. Programmed Fuel Injection (PGM-FI)

Fuel Control

SOHC

Fuel Consumption

6.53 litres/100 km (15.3 km/l or 36.02 mpg)

Fuel Capacity

24.98 litres / 6.60 gallons

Reserve Fuel Capacity

4.54 litres / 1.20 gallons

Emission Details

Meets current CARB and EPA standards.

Greenhouse Gases

151.5 CO

Suspension

Front Suspension

45mm cartridge fork with anti-dive system.

Front Suspension Travel

140 mm / 5.5 inches

Front Wheel Travel

175 mm / 6.9 inches

Rear Suspension

Pro-Arm single-side swingarm with Pro-Link single shock with computer-controlled spring-preload adjustment with two memory presets

Rear Wheel Travel

203 mm / 8.0 inches

Tires and Rims

Front Tire

25/8-12

Front Tire Dimensions

130/70-R18

Rear Tire

25/10-12

Rear Tire Dimensions

180/60-R16

Brakes

Front Brakes

Double disc. Anti-lock braking

Front Brake Diameter

296 mm / 11.7 inches

Rear Brakes

Single disc

Rear Brake Diameter

316 mm / 12.4 inches

Notes, Comments and Warranty Information

Comments

Model ID: TRX680FA

Factory Warranty

One year. Unlimited milage. Transferable.

Colour Options

Metallic Red, Metallic Black, Pearl Yellow, Metallic Titanium
