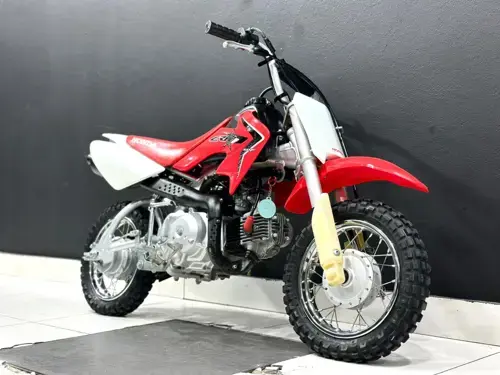

Honda CRF50F 2014 specifications pictures and more for the 2014 Honda CRF50F in South Africa brought to you by Motomedia

Honda CRF50F 2014 motorcycle info

Main Detail

Make

Honda

Model

CRF50F

Year

2014

Dimensions and Weight

Dry Weight

47.0 kg / 103.6 pounds

Ground Clearance

147 mm / 5.8 inches

Trail

110 mm / 4.3 inches

Kerb Weight

122.0 kg / 269.0 pounds

Wheelbase

914 mm / 36.0 inches

Engine and Exhaust

Bore / Stroke

39.0 x 41.4 mm / 1.5 x 1.6 inches

Engine Capacity

49.00 cc / 2.99 cubic inches

Compression

10.0:1

Engine Type

Single cylinder, four-stroke

Ignition

Starter

Kick

Transmission (Gearbox) and Final Drive

Transmission Type

Chain

Gearbox

3-speed

Clutch

Automatic

Drive line

#520 T-ring-sealed chain; 13T/51T

Fuel and Emission Standards

Fuel System

Carburettor. 13mm piston-valve carburator

Fuel Control

SOHC

Fuel Capacity

3.00 litres / 0.79 gallons

Reserve Fuel Capacity

0.80 litres / 0.21 gallons

Emission Details

Meets current CARB and EPA standards.

Suspension

Front Suspension

21.7mm inverted telescopic fork

Front Suspension Travel

90 mm / 3.5 inches

Front Wheel Travel

315 mm / 12.4 inches

Rear Suspension

Monoshock with cantilever-type swingarm

Rear Wheel Travel

312 mm / 12.3 inches

Tires and Rims

Front Tire Dimensions

2.50-10

Rear Tire

110/100-18

Rear Tire Dimensions

2.50-10

Rims

Wire spoke

Brakes

Front Brakes

Expanding brake (drum brake)

Front Brake Diameter

240 mm / 9.4 inches

Rear Brakes

Expanding brake (drum brake)

Rear Brake Diameter

240 mm / 9.4 inches

Notes, Comments and Warranty Information

Comments

Model ID: CRF450X

Colour Options

Red/white
