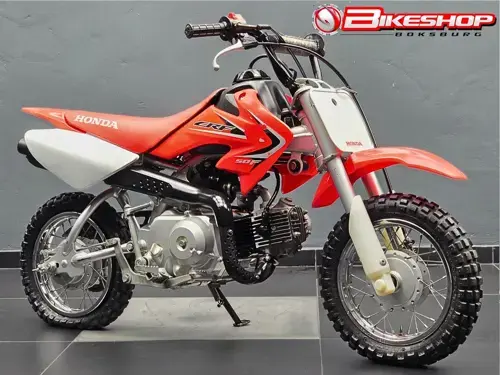

Honda CRF50F 2011 specifications pictures and more for the 2011 Honda CRF50F in South Africa brought to you by Motomedia

Honda CRF50F 2011 motorcycle info

Main Detail

Make

Honda

Model

CRF50F

Year

2011

Dimensions and Weight

Ground Clearance

147 mm / 5.8 inches

Overall Width

1,016 mm / 40.0 inches

Kerb Weight

49.9 kg / 110.0 pounds

Wheelbase

914 mm / 36.0 inches

Engine and Exhaust

Bore / Stroke

39.0 x 41.4 mm / 1.5 x 1.6 inches

Engine Capacity

49.00 cc / 2.99 cubic inches

Compression

10.0:1

Engine Type

Single cylinder, four-stroke

Ignition

Starter

Electric

Valves / Cylinder

Transmission (Gearbox) and Final Drive

Transmission Type

Chain

Gearbox

3-speed

Clutch

Wet, multiplate

Drive line

#420 chain; 14T/37T

Fuel and Emission Standards

Fuel System

Carburettor. 13mm piston-valve carburator

Fuel Control

SOHC

Fuel Capacity

2.65 litres / 0.70 gallons

Emission Details

Meets current CARB and EPA standards.

Suspension

Front Suspension

Inverted telescopic fork

Front Suspension Travel

89 mm / 3.5 inches

Front Wheel Travel

300 mm / 11.8 inches

Rear Suspension

Single-shock

Rear Wheel Travel

71 mm / 2.8 inches

Tires and Rims

Front Tire Dimensions

2.50-10

Rear Tire Dimensions

2.50-10

Brakes

Front Brakes

Expanding brake (drum brake)

Rear Brakes

Expanding brake (drum brake)

Notes, Comments and Warranty Information

Modifications from Previous Model

Also called USHighland 507 ATX QuadRacer.

Colour Options

Red

Honda CRF50F 2011 specs
