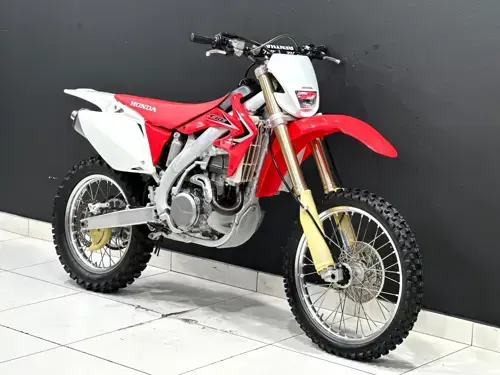

Honda CRF450X 2013 specifications pictures and more for the 2013 Honda CRF450X in South Africa brought to you by Motomedia

Honda CRF450X 2013 motorcycle info

Main Detail

Make

Honda

Model

CRF450X

Year

2013

Performance and Speed

Torque

14.10 Nm (1.4 kgf-m or 10.4 ft.lbs) @ 11000 Revolutions">RPM

Dimensions and Weight

Ground Clearance

345 mm / 13.6 inches

Overall Height

1,171 mm / 46.1 inches

Overall Length

1,900 mm / 74.8 inches

Overall Width

770 mm / 30.3 inches

Trail

78 mm / 3.1 inches

Kerb Weight

122.0 kg / 269.0 pounds

Wheelbase

1,481 mm / 58.3 inches

Engine and Exhaust

Bore / Stroke

96.0 x 62.0 mm / 3.8 x 2.4 inches

Engine Capacity

449.00 cc / 27.40 cubic inches

Compression

12.0:1

Engine Type

Single cylinder, four-stroke

Ignition

CD with electronic advance and lighting coil

Starter

Electric & kick

Valves / Cylinder

Transmission (Gearbox) and Final Drive

Transmission Type

Chain

Gearbox

5-speed

Drive line

#520 T-ring-sealed chain; 13T/51T

Fuel and Emission Standards

Fuel System

Carburettor. Keihin? 40mm flat-slide carburetor with Throttle Position Sensor (TPS)

Fuel Control

SOHC

Fuel Capacity

7.19 litres / 1.90 gallons

Emission Details

Meets current California Air Resources Board (CARB) and EPA off-road emissions standards.

Suspension

Front Suspension

47mm inverted Showa? cartridge fork with 16-position rebound and 16-position compression-damping adjustability

Front Suspension Travel

315 mm / 12.4 inches

Front Wheel Travel

275 mm / 10.8 inches

Rear Suspension

Pro-Link? Showa? single shock with adjustable spring-preload, 17-position rebound-damping adjustability, and compression-damping adjustment separated into low-speed (13 positions) and high-speed (3.5 turns)

Rear Wheel Travel

282 mm / 11.1 inches

Tires and Rims

Front Tire

70/100-19

Rear Tire

90/100-6

Rear Tire Dimensions

110/100-18

Rims

Aluminium rim/wire spoke

Brakes

Front Brakes

Double disc. Two-piston calipers.

Front Brake Diameter

240 mm / 9.4 inches

Rear Brakes

Single disc

Rear Brake Diameter

240 mm / 9.4 inches

Notes, Comments and Warranty Information

Comments

Model ID: CRF450X

Colour Options

Red

Honda CRF450X 2013 specs
