Honda CRF450X 2006 specifications pictures and more for the 2006 Honda CRF450X in South Africa brought to you by Motomedia

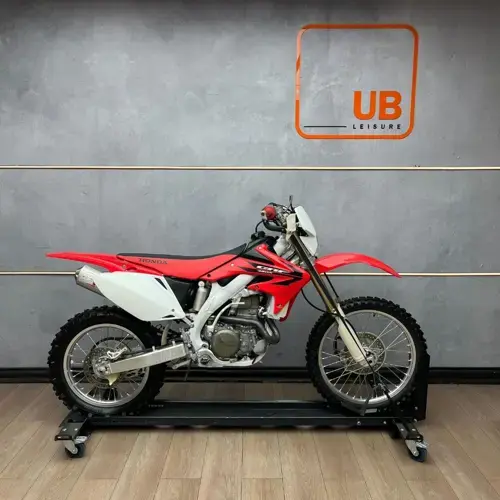

Honda CRF450X 2006 motorcycle info

Main Detail

Make

Honda

Model

CRF450X

Year

2006

Dimensions and Weight

Dry Weight

113.4 kg / 250.0 pounds

Ground Clearance

348 mm / 13.7 inches

Trail

113 mm / 4.4 inches

Wheelbase

1,478 mm / 58.2 inches

Engine and Exhaust

Bore / Stroke

96.0 x 62.0 mm / 3.8 x 2.4 inches

Engine Capacity

449.00 cc / 27.40 cubic inches

Compression

12.0:1

Engine Type

Single cylinder

Ignition

CD with electronic advance and lighting coil

Starter

Electric & kick

2 / 4 Stroke

Valves / Cylinder

Transmission (Gearbox) and Final Drive

Transmission Type

Chain

Gearbox

5-speed

Lubrication System

Dry sump

Fuel and Emission Standards

Fuel System

Carburettor. Keihin 40.0mm flat-slide with throttle position sensor (TPS)

Fuel Control

SOHC

Fuel Capacity

8.59 litres / 2.27 gallons

Suspension

Front Suspension

47.0mm inverted Showa cartridge fork with 16-position rebound- and 16-position compression-damping adjustability

Front Suspension Travel

315 mm / 12.4 inches

Front Wheel Travel

315 mm / 12.4 inches

Rear Suspension

Pro-Link Showa single shock with adjustable spring preload, 17-position rebound damping adjustability, and compression damping adjustment separated into low speed (13 positions) and high-speed (3.5 turns)

Rear Wheel Travel

315 mm / 12.4 inches

Tires and Rims

Front Tire Dimensions

80/70-21

Rear Tire Dimensions

110/90-18

Brakes

Front Brakes

Single disc

Front Brake Diameter

240 mm / 9.4 inches

Rear Brakes

Single disc

Rear Brake Diameter

240 mm / 9.4 inches

Notes, Comments and Warranty Information

Colour Options

Red
