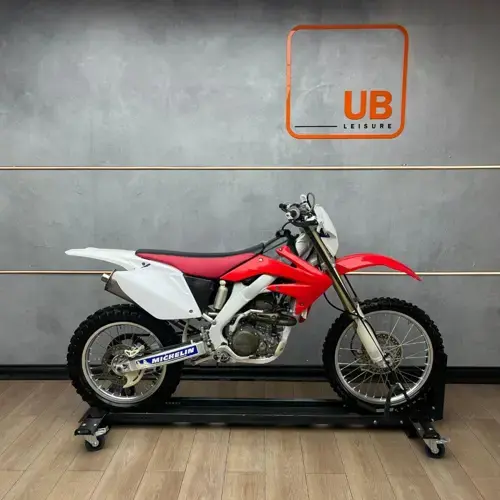

Honda CRF250X 2006 specifications pictures and more for the 2006 Honda CRF250X in South Africa brought to you by Motomedia

Honda CRF250X 2006 motorcycle info

Main Detail

Make

Honda

Model

CRF250X

Year

2006

Dimensions and Weight

Dry Weight

102.1 kg / 225.0 pounds

Ground Clearance

345 mm / 13.6 inches

Trail

118 mm / 4.6 inches

Wheelbase

1,481 mm / 58.3 inches

Engine and Exhaust

Bore / Stroke

78.0 x 52.2 mm / 3.1 x 2.1 inches

Engine Capacity

249.00 cc / 15.19 cubic inches

Compression

12.5:1

Engine Type

Single cylinder

Ignition

CD with electronic advance and lighting coil

Starter

Electric & kick

2 / 4 Stroke

Transmission (Gearbox) and Final Drive

Transmission Type

Chain

Gearbox

5-speed

Fuel and Emission Standards

Fuel System

Carburettor. Keihin 37.0 mm flat-slide with throttle position sensor (TPS)

Fuel Capacity

8.32 litres / 2.20 gallons

Suspension

Front Suspension

47.0mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping adjustability

Front Suspension Travel

315 mm / 12.4 inches

Front Wheel Travel

315 mm / 12.4 inches

Rear Suspension

Pro-Link Showa single shock with spring-preload, 17-position rebound-damping adjustability, and compression-damping adjustment separated into low-speed (13 positions) and high-speed (3.5 turns)

Rear Wheel Travel

315 mm / 12.4 inches

Tires and Rims

Front Tire Dimensions

80/70-21

Rear Tire Dimensions

100/90-18

Brakes

Front Brakes

Single disc

Front Brake Diameter

240 mm / 9.4 inches

Rear Brakes

Single disc

Rear Brake Diameter

240 mm / 9.4 inches

Notes, Comments and Warranty Information

Colour Options

Red
