Honda CRF230F 2014 specifications pictures and more for the 2014 Honda CRF230F in South Africa brought to you by Motomedia

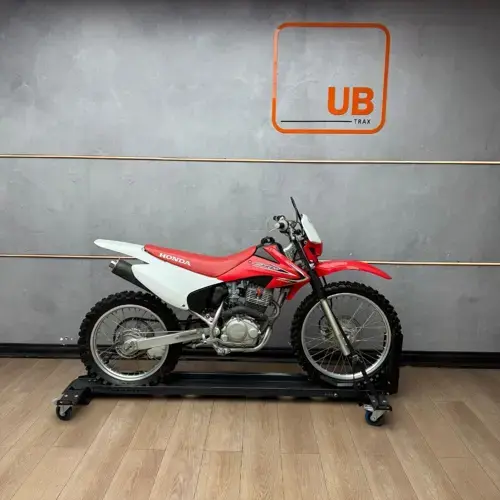

Honda CRF230F 2014 motorcycle info

Main Detail

Make

Honda

Model

CRF230F

Year

2014

Dimensions and Weight

Ground Clearance

297 mm / 11.7 inches

Trail

112 mm / 4.4 inches

Kerb Weight

112.9 kg / 249.0 pounds

Wheelbase

1,374 mm / 54.1 inches

Engine and Exhaust

Bore / Stroke

65.5 x 66.2 mm / 2.6 x 2.6 inches

Compression

9.0:1

Engine Type

Single cylinder, four-stroke

Ignition

Starter

Electric & kick

Transmission (Gearbox) and Final Drive

Transmission Type

Chain

Gearbox

6-speed

Drive line

#520 O-ring-sealed chain; 13T/50T

Fuel and Emission Standards

Fuel System

Carburettor. 26mm piston-valve carburetor

Fuel Control

Single Overhead Cams (SOHC)

Fuel Capacity

7.19 litres / 1.90 gallons

Emission Details

Meets current California Air Resources Board (CARB) and EPA off-road emissions standards.

Suspension

Front Suspension

37mm leading-axle Showa® fork; 9.5 inches travel

Front Wheel Travel

241 mm / 9.5 inches

Rear Suspension

Pro-Link® Showa single shock with spring-preload adjustability; 9.0 inches travel

Tires and Rims

Rear Tire

100/100-18

Brakes

Front Brakes

Single disc

Front Brake Diameter

240 mm / 9.4 inches

Rear Brakes

Expanding brake (drum brake)

Rear Brake Diameter

223 mm / 8.8 inches

Notes, Comments and Warranty Information

Comments

Model ID: CRF230F

Colour Options

Red

Honda CRF230F 2014 specs
